Product Detailed Parameters
- Description：LINE FLTR 440VAC 100A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

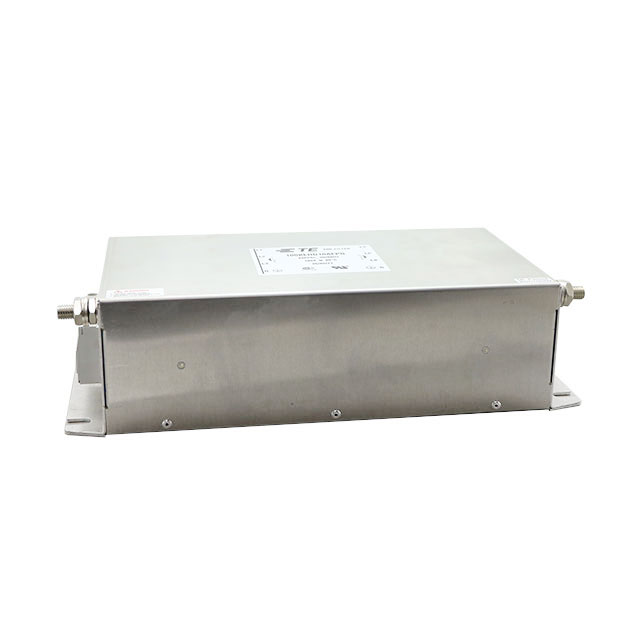

The 100KEMS10AFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a single-stage design rated for 440 VAC and 100 A at 50 Hz or 60 Hz operating frequencies. The unit utilizes chassis mounting with terminal block connections and exhibits a leakage current of 18 mA. Physical dimensions are 202 mm in length, 120 mm in width, and 80 mm in height. It operates within a temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference suppression for three-phase power lines
- Engineered for high-current applications with a 100 A continuous rating
- Supports delta configuration input and output connections
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Heavy-duty manufacturing equipment
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential availability constraints. Confirm that the specific suffix matches project requirements as ordering variations may exist. Ensure compatibility with existing chassis mounting infrastructure and terminal block interfaces before finalizing procurement decisions.
Selection Notes
Select this model when a three-phase filter capable of handling 100 A at 440 VAC is required. Ensure the installation environment supports the specified physical dimensions and thermal operating range. Verify that terminal block termination methods align with the system's wiring architecture and safety certification needs.
Part Context
This component belongs to the KEM series of power line filters designed for demanding industrial environments. The series offers various current ratings and connection types to accommodate different three-phase power distribution requirements while maintaining strict electromagnetic interference standards.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference electrical ratings and physical dimensions to ensure functional equivalence during replacement scenarios.
