Product Detailed Parameters
- Description：LINE FLTR 520VAC 100A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

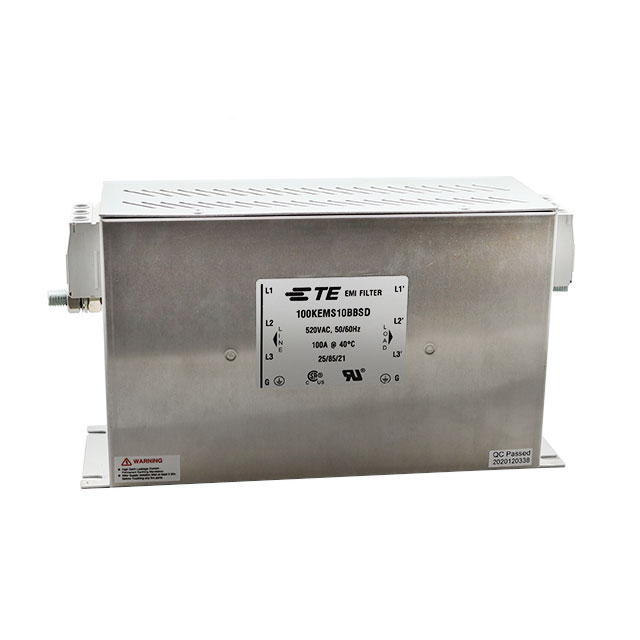

The TE Connectivity Corcom 100KEMS10BBSD is a three-phase power line filter designed for industrial applications. It features a single-stage configuration with a current rating of 100 A and operates at 520 VAC. The unit utilizes terminal block connections and supports flange mounting. This component is engineered to mitigate electromagnetic interference in high-power electrical systems.
Feature Summary
- Provides single-stage electromagnetic interference mitigation for three-phase power lines
- Engineered for robust performance in demanding industrial environments
- Supports secure terminal block connections for reliable power integration
Applications
- Industrial power system noise reduction
- High-current equipment protection
- Electromagnetic compatibility enhancement in manufacturing facilities
Procurement Notes
Verify the exact voltage and current ratings against specific application requirements before procurement. Confirm that the terminal block interface matches existing wiring infrastructure. Ensure the flange mounting dimensions align with the designated enclosure space. Validate compliance with relevant regional safety standards for the intended deployment environment.
Selection Notes
Select this model when a single-stage solution is sufficient for the required attenuation levels. Consider the 100 A capacity to ensure adequate headroom for peak loads. Evaluate the physical constraints to confirm the flange mount style fits the assembly. Compare leakage current specifications if strict isolation limits are mandated by the system design.
Part Context
This component belongs to the Corcom KEM series, which specializes in high-current power line filtering solutions. The series is widely recognized for durability in heavy-duty industrial settings. The 100KEMS variant specifically addresses three-phase configurations requiring substantial current handling capabilities.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical parameters carefully when considering alternative models from other manufacturers.
