100KEMS10BFPD

Overview

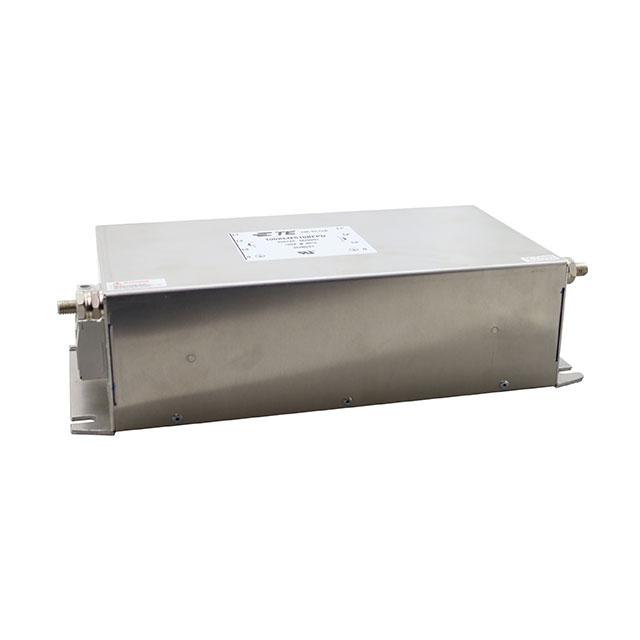

The TE Connectivity Corcom Filters 100KEMS10BFPD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a single-stage configuration with a high-perforated design, rated for 520 VAC and 100 A at 50 Hz. The unit utilizes chassis mounting and terminal block termination to ensure secure installation in demanding environments.

Feature Summary

• Provides electromagnetic interference mitigation through a single-stage filtering architecture
• Engineered for high-current industrial operations with a robust chassis mount structure
• Utilizes terminal block connections for reliable electrical interface

Applications

• Industrial automation systems requiring three-phase power conditioning
• Manufacturing equipment operating on 520 VAC networks
• Heavy machinery installations needing EMI suppression

Procurement Notes

Verify the specific datasheet version before procurement as component specifications may evolve. Confirm that the terminal block termination style matches your existing wiring infrastructure. Ensure the chassis mounting dimensions align with your enclosure design constraints prior to finalizing orders.

Selection Notes

Select this model when a single-stage solution is sufficient for your noise reduction requirements. The 100 A rating suits heavy-duty loads, while the 520 VAC specification targets specific industrial voltage standards. Consider the physical size of the chassis mount footprint during the initial layout phase.

Part Context

This component belongs to the KEM series of power line filters from TE Connectivity Corcom. The series offers various current ratings and configurations for three-phase applications. The 100KEMS10BFPD specifically addresses high-current needs within this product family.

Replacement Considerations

Consult official TE Connectivity documentation for verified substitute part numbers. Cross-referencing requires matching voltage, current, and mounting specifications to ensure functional compatibility.
