Product Detailed Parameters
- Description：LINE FLTR 440VAC 100A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

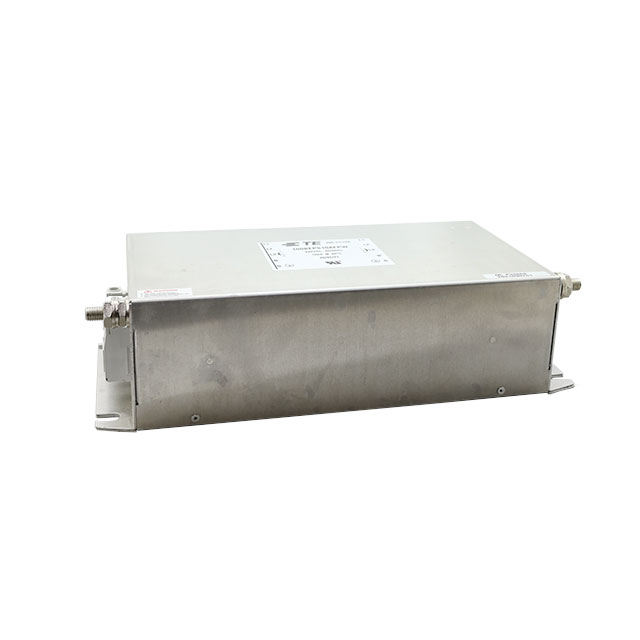

The 100KEPS10AFPW is a three-phase Very High-Performance EMI filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with quick connect and screw termination options. The unit is rated for 440 VAC at 100 A, operating at 50 Hz or 60 Hz. Physical dimensions are 350 mm in length, 92 mm in width, and 160 mm in height. Leakage current is specified at 15 mA. Compliance includes UL and CSA certifications.
Feature Summary
- Provides very high-performance electromagnetic interference suppression for three-phase power lines
- Supports dual termination methods using both quick connect terminals and screw connections
- Engineered for robust chassis mounting in industrial environments
Applications
- Industrial machinery requiring strict EMI/EMC compliance
- Three-phase power distribution systems operating at 440 VAC
- Equipment sensitive to high-frequency electrical noise
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to discontinued status. Confirm physical compatibility with existing chassis mounting points and terminal configurations. Review datasheet specifications for leakage current and voltage ratings against system requirements. Ensure replacement parts meet original UL and CSA certification standards for safety compliance.
Selection Notes
Select this model when very high performance attenuation is required for 100 A three-phase applications. Compare leakage current specifications against sensitive load requirements. Verify that the chassis mount form factor fits available enclosure space. Consider termination style preferences between quick connect and screw options during integration planning.
Part Context
This component belongs to the KEPS series of three-phase power line filters from TE Connectivity Corcom. The series offers various current ratings and performance levels for industrial power conditioning. The 100KEPS10AFPW represents the high-current variant within this specific product family designed for demanding electromagnetic compatibility scenarios.
Replacement Considerations
Public sources indicate this part number is discontinued. No specific substitute part numbers are confirmed in the provided documentation. Engineers must evaluate equivalent three-phase filters with matching 100 A ratings and very high performance characteristics.
