Product Detailed Parameters
- Description：LINE FLTR 520VAC 100A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

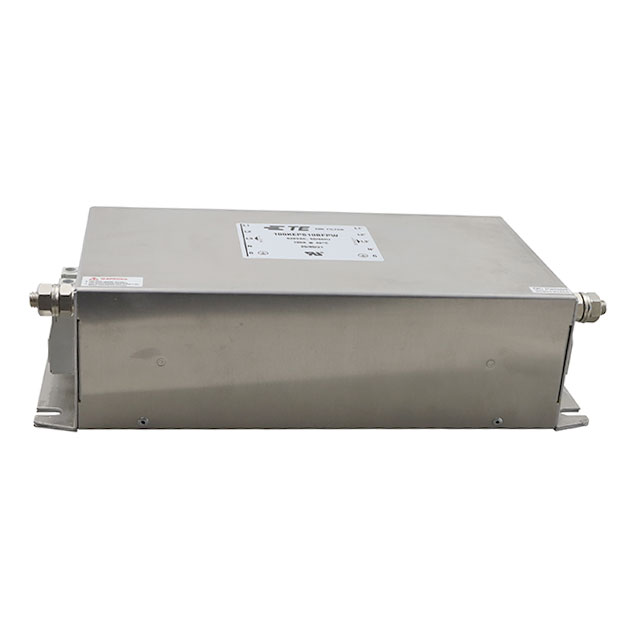

The 100KEPS10BFPW is a three-phase Wye configuration EMI/EMI line filter manufactured by TE Connectivity Corcom. It features a single-stage design with a current rating of 100 A and a maximum continuous operating voltage of 520 VAC at 50 Hz or 60 Hz frequencies. The unit utilizes terminal block connections for secure electrical interfacing and is designed for chassis or flange mounting. This component belongs to the KEP series, providing superior performance electromagnetic interference suppression for industrial power applications.
Feature Summary
- Single-stage three-phase filtering architecture
- Terminal block connection interface
- Chassis or flange mounting capability
Applications
- Industrial power distribution systems
- Electromagnetic compatibility (EMC) compliance in machinery
- Three-phase equipment noise suppression
Procurement Notes
Verify the specific part number against official TE Connectivity documentation to confirm current availability status. As this component may be subject to lifecycle changes, consult authorized distributors for lead times and obsolescence notices. Ensure that the 520 VAC rating and 100 A current capacity align with the target system requirements before procurement.
Selection Notes
Select this model when a three-phase Wye topology is required for high-current applications up to 100 A. Confirm that the 520 VAC voltage rating matches the network specifications. Verify that terminal block termination suits the wiring infrastructure and that chassis mounting constraints are accommodated within the enclosure design.
Part Context
This filter is part of the KEPS series from TE Connectivity Corcom, which offers various current ratings and voltage configurations for three-phase power lines. The KEP series is engineered for robust electromagnetic interference reduction in demanding industrial environments, ensuring reliable operation under specified thermal and electrical conditions.
Replacement Considerations
Consult TE Connectivity official substitution guides for equivalent models with matching current and voltage ratings. Verify that any alternative maintains the same three-phase Wye configuration and terminal block interface to ensure mechanical and electrical compatibility.
