Product Detailed Parameters
- Description：LINE FLTR 440VAC 100A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

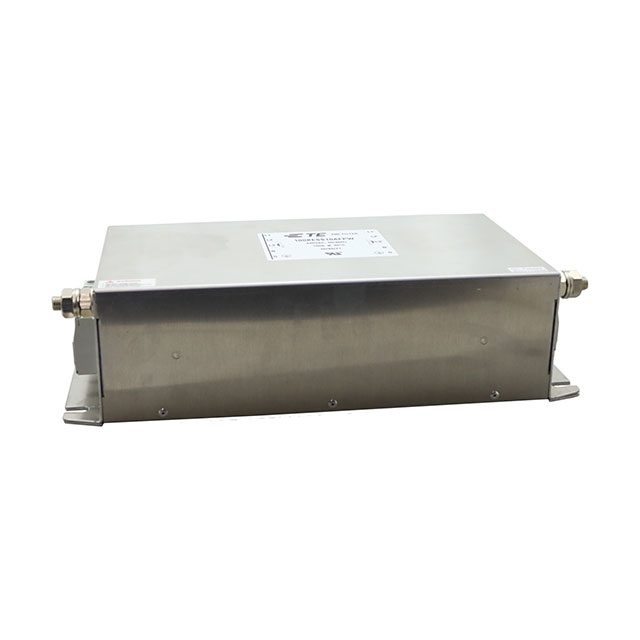

The 100KESS10AFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity under the Corcom brand. Designed for chassis mounting with screw termination, it supports a nominal voltage of 440 VAC and a maximum rating of 520 VAC at 50 Hz or 60 Hz frequencies. The unit handles a continuous current of 100 A with a leakage current of 6 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It operates within a temperature range of -25°C to +85°C and holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Utilizes a Wye configuration for high-current industrial applications
- Features robust chassis mount construction with screw terminals
Applications
- Industrial automation machinery power conditioning
- Large-scale climate control system integration
- High-power electrical distribution panels
Procurement Notes
Verify component availability status as this part number is listed as discontinued or end-of-life. Confirm specific supply chain constraints and potential obsolescence risks before finalizing procurement plans. Check for authorized distributor stock limitations and ensure compatibility with existing system requirements given the product lifecycle status.
Selection Notes
Select this model when a three-phase filter rated for 100 A at 440 VAC is required. Ensure chassis mounting space accommodates the specified physical dimensions. Verify that the 6 mA leakage current meets safety standards for the specific application environment. Confirm that screw termination methods align with the system's wiring infrastructure.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity Corcom. The series is designed for demanding industrial environments requiring significant current handling capabilities. The specific suffix indicates the voltage rating, phase configuration, and termination style unique to this variant within the broader product family.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, engineering teams should evaluate alternative models from the same manufacturer or compatible third-party solutions that match the electrical and mechanical specifications.
