Product Detailed Parameters
- Description：LINE FLTR 520VAC 100A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

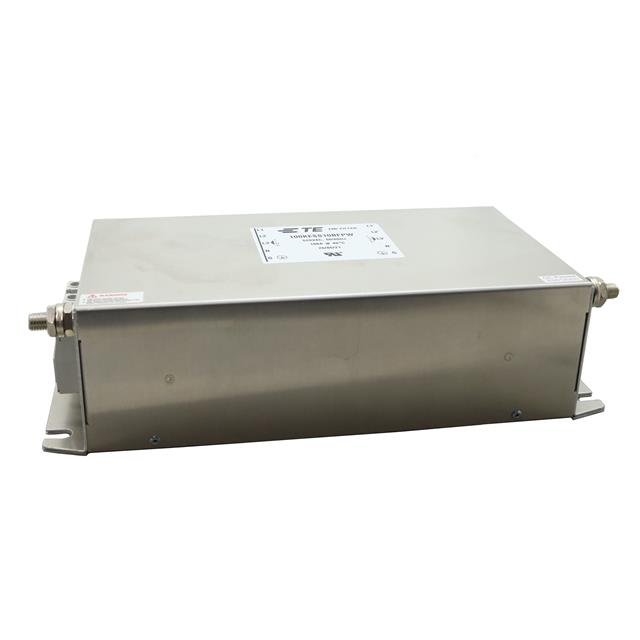

The 100KESS10BFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with screw termination for secure installation. The component supports a continuous current rating of 100 A and operates at frequencies of 50 Hz and 60 Hz. Voltage ratings include 440 VAC and 520 VAC, with a maximum leakage current of 6 mA. Operating temperatures range from -25°C to +85°C. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height.
Feature Summary
- Provides three-phase EMI/EMC filtering for industrial power systems
- Utilizes a robust chassis mount configuration with screw terminals
- Designed for high-current applications up to 100 A
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input stages
- General-purpose industrial equipment requiring EMC compliance
Procurement Notes
Verify the specific voltage requirement (440 VAC or 520 VAC) against system specifications before procurement. Confirm that the chassis mounting footprint matches the available enclosure space. Check for end-of-life status as the component may be subject to discontinuation. Ensure environmental conditions remain within the specified -25°C to +85°C operating temperature range during deployment.
Selection Notes
Select this model when a three-phase solution is required for currents exceeding standard single-phase limits. The 100 A rating distinguishes it from lower-capacity series components. Verify compatibility with 50 Hz or 60 Hz grid frequencies. Consider the physical dimensions if panel real estate is constrained compared to smaller filter variants.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity Corcom. The series is engineered for heavy-duty industrial environments where significant electromagnetic interference suppression is necessary. It complements other Corcom products designed for varying current capacities and phase configurations.
Replacement Considerations
Public documentation indicates this part number is marked as obsolete. Verify availability of direct substitutes through official manufacturer channels. Cross-reference mechanical dimensions and electrical ratings carefully when evaluating alternative three-phase filters.
