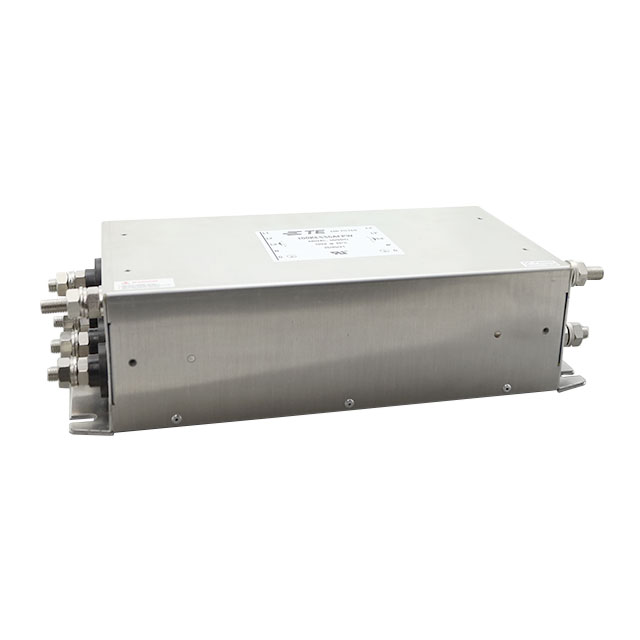

100KESS6AFPW

$383.32

Description：LINE FLTR 440VAC 100A CHASS MNT
Series：KES
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:8ee6743e9895 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 440VAC 100A CHASS MNT
Series：KES
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：440V
Current：100 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M10)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

100KESS6AFPW

Overview

The 100KESS6AFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with screw termination and threaded bolt flange mounting. The unit supports a rated current of 100 A at operating frequencies of 50 Hz and 60 Hz, with voltage ratings of 440 VAC and 520 VAC. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It operates within a temperature range of -25°C to +85°C and has a leakage current of 6 mA. Compliance includes UL and CSA certifications.

Feature Summary

Provides electromagnetic interference suppression for three-phase power systems
Utilizes a robust chassis mount configuration with screw connections
Designed for industrial environments with wide thermal tolerance

Applications

Industrial machinery power conditioning
Three-phase motor drive protection
Factory automation equipment filtering

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to end-of-life status. Confirm mechanical fitment against existing chassis specifications. Ensure replacement sourcing aligns with current supply chain constraints for discontinued items.

Selection Notes

Evaluate compatibility with 440VAC or 520VAC system voltages. Verify that the 100A current rating meets peak load requirements. Check physical space availability for the specified chassis dimensions and mounting hole patterns.

Part Context

This component belongs to the KES series of power line filters from TE Connectivity / Corcom. It is designed for high-current three-phase applications requiring significant noise attenuation. The product falls under the broader category of power condition components used in heavy-duty electrical infrastructure.
