100KESS6BFPW

Overview

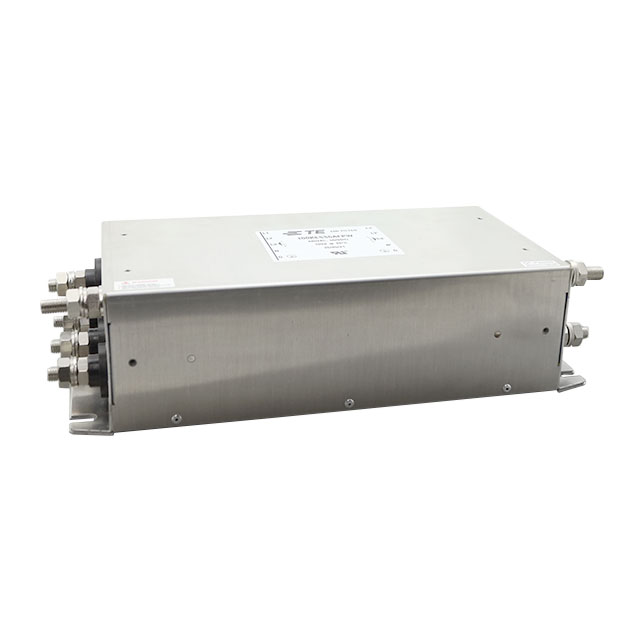

The 100KESS6BFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with screw termination and threaded bolt flange mounting. The component supports a rated current of 100 A and operates at voltage ratings of 440 VAC and 520 VAC. It is designed for a working frequency of 50 Hz. The unit has a leakage current of 6 mA and complies with UL and CSA standards. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. The operating temperature range spans from -25 C to +85 C.

Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes a robust chassis mount configuration with screw terminations
• Designed for industrial environments with wide thermal tolerance

Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation power distribution

Procurement Notes

Verify the specific datasheet version as this part number may be subject to obsolescence notices. Confirm mechanical fitment requirements including the threaded bolt flange interface and chassis cutout dimensions before procurement. Ensure that the 100 A current rating aligns with the system's continuous load requirements and that the 520 VAC rating matches the supply voltage. Check for any alternative suffixes that might indicate different certification or terminal configurations.

Selection Notes

Select this component when a high-current three-phase filter is required for chassis installation. The 100 A rating distinguishes it from lower-capacity models in the KES series. Consider the physical footprint of 350 mm length when designing enclosure layouts. Verify compatibility with the 520 VAC system voltage rather than standard 440 VAC only applications. Ensure the screw termination type matches the available busbar or cable lugs in the assembly.

Part Context

This filter belongs to the Corcom KES series of power line filters, which are engineered for demanding industrial applications. The series offers various current ratings and mounting options to suit different power distribution needs. As a TE Connectivity product, it adheres to strict quality and compliance standards for global industrial equipment. The KES series is known for its durability and effective noise attenuation in harsh electrical environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
