100KEVD10ABSW

Overview

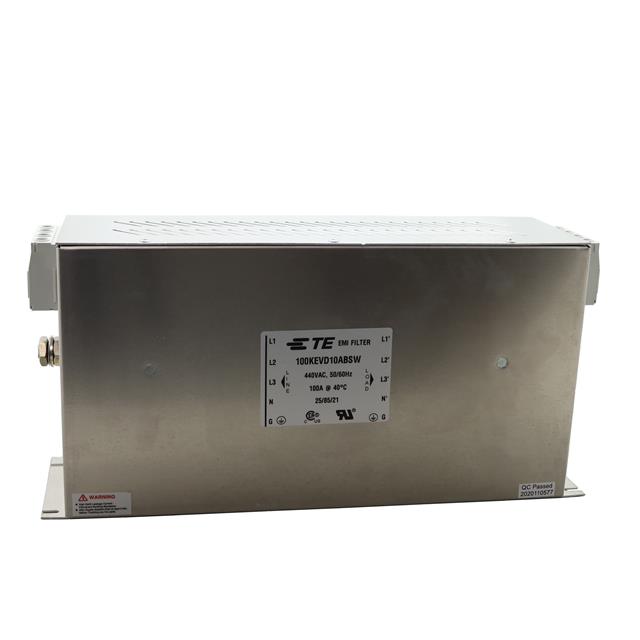

The 100KEVD10ABSW is a three-phase wye-connected EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It is rated for 100 A current and 440 VAC voltage at 50 Hz or 60 Hz operating frequencies. The unit features a two-stage configuration with chassis mount installation and utilizes quick connect and screw terminal types. Physical dimensions are 350 mm in length, 92 mm in width, and 160 mm in height. Leakage current is specified at 15 mA. The component operates within a temperature range of -25 °C to +85 °C and holds UL and CSA compliance certifications.

Feature Summary

• Two-stage filtering architecture designed for superior EMI suppression in three-phase systems
• Wye connection topology compatible with standard industrial power distribution networks
• Robust chassis mounting design suitable for heavy-duty equipment integration

Applications

• Industrial machinery requiring high-current power conditioning
• Three-phase motor drive systems needing EMI mitigation
• Commercial power distribution panels

Procurement Notes

Verify the exact suffix against official TE Connectivity documentation to confirm terminal style and mechanical variations. Confirm current availability status as supply conditions may change. Ensure the receiving facility has appropriate handling procedures for high-current components. Cross-reference the manufacturer part number with internal bills of materials to prevent substitution errors during maintenance or production phases.

Selection Notes

Select this model when a two-stage solution is required for 100 A three-phase applications. Verify that the chassis mounting footprint matches the enclosure design. Ensure the leakage current specification aligns with safety standards for the specific application environment. Confirm that the quick connect and screw terminal options suit the existing wiring infrastructure.

Part Context

This component belongs to the KEV series of power line filters from TE Connectivity Corcom Filters. The series focuses on high-performance EMI suppression for demanding industrial environments. The KEV series typically offers multi-stage filtering capabilities to meet stringent electromagnetic compatibility requirements for sensitive electronic loads connected to three-phase power sources.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
