Product Detailed Parameters
- Description：LINE FLTR 440VAC 100A CHASS MNT
- Series：KEV
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

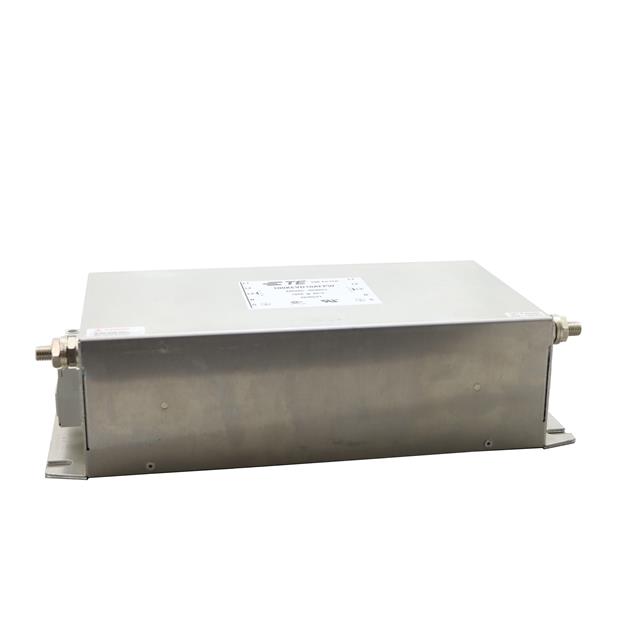

The 100KEVD10AFPW is a three-phase very high-performance EMI filter manufactured by TE Connectivity Corcom. Designed for chassis mounting, it supports a voltage rating of 440 VAC and a current capacity of 100 A at operating frequencies of 50 Hz and 60 Hz. The unit features a two-stage configuration with quick connect and screw terminal options. Physical dimensions are 350 mm in length, 92 mm in width, and 160 mm in height. It operates within a temperature range of -25 C to +85 C and has a leakage current of 15 mA. Compliance includes UL and CSA certifications.
Feature Summary
- Three-phase very high-performance EMI filtering capability
- Dual termination interface supporting both quick connect and screw connections
- Chassis mount construction for industrial integration
Applications
- Industrial power distribution systems
- Electromagnetic compatibility protection for three-phase equipment
- High-current AC power line noise suppression
Procurement Notes
Verify component status as the part is listed as obsolete or discontinued in available records. Confirm availability through authorized distributors or secondary markets. Ensure replacement strategies account for end-of-life status. Validate technical specifications against original datasheets before procurement decisions.
Selection Notes
Select this component for applications requiring robust three-phase EMI filtration at 100 A. Consider physical constraints due to chassis mount requirements and specific terminal types. Evaluate thermal performance within the specified operating temperature range. Verify compliance with required safety standards such as UL and CSA for the target market.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The series focuses on high-performance electromagnetic interference reduction for industrial environments. The model designation indicates specific electrical ratings and configuration details relevant to three-phase wye systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct replacements may require engineering evaluation of equivalent electrical and mechanical specifications.
