100KEVD10BBSW

Overview

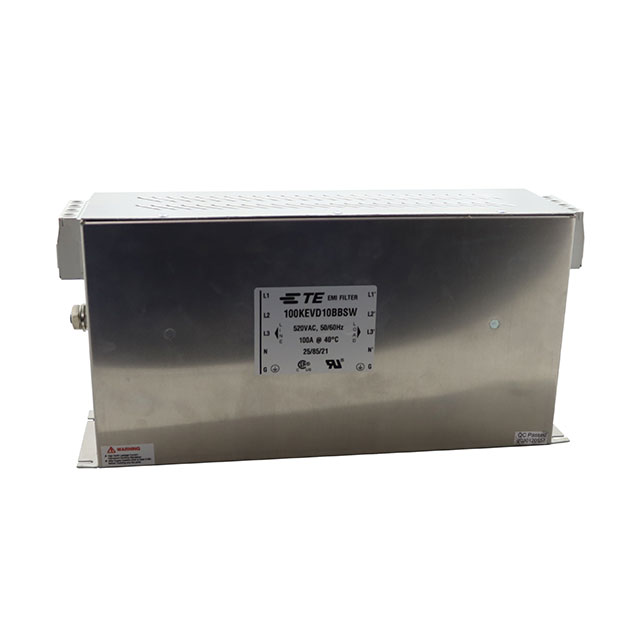

The TE Connectivity Corcom Filters 100KEVD10BBSW is a three-phase (Wye) EMC/EMI power line filter designed for high-current industrial applications. It features a dual-stage configuration to provide effective noise suppression across the power spectrum. The unit supports a rated current of 100 A and operates at a voltage rating of 520 VAC. It is engineered for use with standard 50 Hz or 60 Hz frequencies. The component utilizes terminal block connections for secure wiring and is constructed for chassis mounting. This filter ensures compliance with relevant electromagnetic compatibility standards while maintaining structural integrity under heavy electrical loads.

Feature Summary

• Dual-stage filtering architecture for enhanced EMI/RFI attenuation
• Three-phase Wye configuration suitable for balanced industrial power systems
• Terminal block termination style for robust electrical connectivity
• Chassis mount design for stable installation in control enclosures

Applications

• Industrial motor drive systems requiring high current filtration
• Three-phase power distribution units in manufacturing environments
• Heavy machinery control panels subject to significant electromagnetic interference
• Power electronics equipment demanding strict EMI compliance

Procurement Notes

Verify the specific terminal block type and mounting hole dimensions against your enclosure design before integration. Confirm that the 100 A continuous current rating aligns with your system's peak load requirements. Ensure the 520 VAC rating exceeds your maximum operating voltage. Check for any recent product change notices regarding material composition or certification updates. Validate that the chassis mounting method matches your available hardware.

Selection Notes

Select this model when a three-phase solution is required for currents up to 100 A. The dual-stage design offers superior noise reduction compared to single-stage alternatives. Ensure the physical footprint accommodates the chassis mount specifications. Consider the terminal block connection style if screw-down wiring is preferred over quick-connect options. Verify compatibility with 50/60 Hz operational frequencies common in global industrial settings.

Part Context

This component belongs to the KEV-BS series from TE Connectivity Corcom Filters, which specializes in high-performance power line filters. The KEV series is widely recognized for its reliability in harsh industrial environments. The 100KEVD10BBSW variant specifically addresses the needs of three-phase systems requiring substantial current handling capabilities. It represents a standard offering for engineers designing robust power conditioning solutions.
