100KEVD10BFPW

Overview

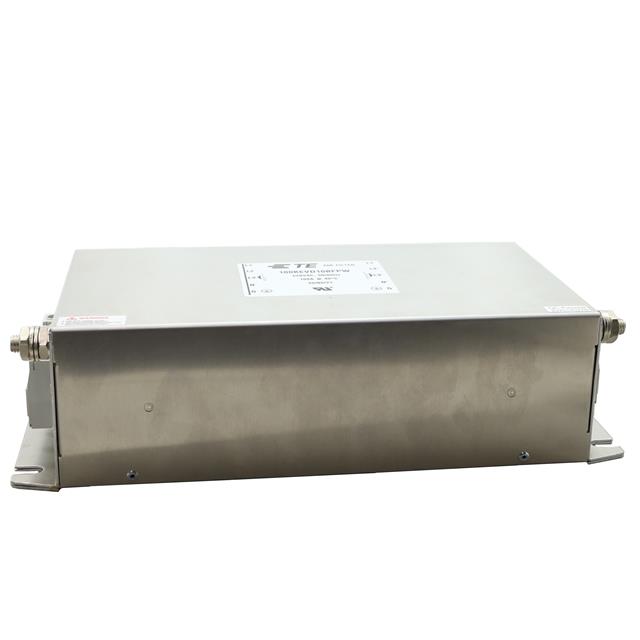

The TE Connectivity Corcom 100KEVD10BFPW is a single-phase EMI power line filter designed for AC mains applications. It features a compact, low-profile housing suitable for panel mounting or chassis integration. The unit provides attenuation across conducted electromagnetic interference frequencies to ensure compliance with regulatory standards such as CISPR and IEC. Rated for continuous operation at specified voltage and current levels, it incorporates internal safety capacitors and common-mode chokes to suppress noise. The design supports reliable performance in industrial and commercial environments where signal integrity and equipment protection are critical.

Feature Summary

• Integrated EMI suppression for conducted noise reduction
• Compact form factor enabling space-efficient installation
• Compliant with international electromagnetic compatibility standards

Applications

• Industrial control systems requiring clean power input
• Commercial office equipment sensitive to line noise
• Medical devices adhering to strict EMC regulations

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the voltage, current, and frequency ratings match your system requirements. Ensure the mounting configuration aligns with your mechanical design constraints. Request the latest datasheet to validate regulatory certifications and environmental operating limits specific to this batch.

Selection Notes

Select this component when single-phase EMI filtering is required within a constrained physical footprint. Evaluate the insertion loss characteristics against your specific noise spectrum needs. Consider the thermal management capabilities if installed in enclosed spaces. Verify that the input/output terminal types suit your wiring infrastructure.

Part Context

This model belongs to the Corcom KEVD series of EMI filters from TE Connectivity. The series is engineered for general-purpose AC power line filtering. It represents a standardized solution for mitigating high-frequency interference on single-phase lines. The product line emphasizes reliability and regulatory compliance for global markets.

Replacement Considerations

Consult TE Connectivity technical support for verified cross-reference part numbers. Ensure any substitute matches the electrical ratings and physical dimensions exactly. Validate that alternative components meet the same EMC certification requirements.
