Product Detailed Parameters
- Description：LINE FLTR 480VAC 100A CHASS MNT
- Series：TDV
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：L1 - 900µH, L2 - 8µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

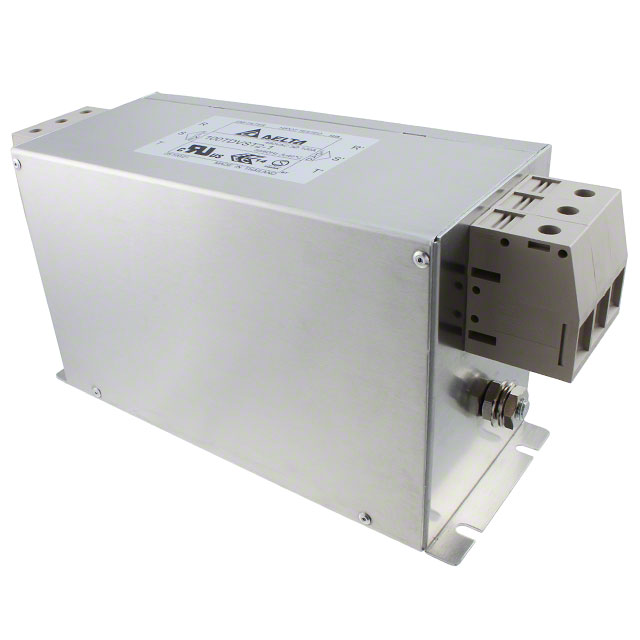

The Delta Electronics 100TDVST2-1 is a three-phase, three-wire power line filter designed for vertical chassis mounting. It features terminal block connections and supports a current rating of 100A with a voltage rating of 480VAC. This component serves as an EMI/EMC filter to suppress electromagnetic interference in industrial power systems.
Feature Summary
- Provides effective suppression of electromagnetic interference (EMI) and radio frequency interference (RFI) in power lines
- Designed for vertical chassis mounting with terminal block input and output connections
- Supports three-phase, three-wire configurations for industrial power applications
Applications
- Industrial automation systems requiring EMI suppression
- Three-phase power distribution networks
- Equipment installation where vertical chassis mounting is required
Procurement Notes
Verify the exact part number suffix, as variants like 100TDVST2 may exist. Confirm that the 100A current rating and 480VAC voltage specifications match your system requirements. Check RoHS compliance status if mandated by your project standards. Ensure the terminal block connection type aligns with your wiring infrastructure before ordering.
Selection Notes
Select this model when a three-phase, three-wire configuration is necessary for high-current applications up to 100A. The vertical chassis mount design suits space-constrained enclosures. Verify that the 480VAC rating is compatible with your supply voltage. Consider the terminal block interface for ease of installation compared to screw or clamp types.
Part Context
Delta Electronics manufactures a range of EMI filters covering single-phase to three-phase options with currents up to 600A. The 100TDVST2-1 belongs to their power line filter series, addressing EMC challenges in industrial environments. These components help shorten design cycles and accelerate product time-to-market by providing pre-certified filtering solutions.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult Delta Electronics directly for cross-reference information or equivalent models within the TDVST series.
