Product Detailed Parameters
- Description：LINE FLTR 480VAC 100A CHASS MNT
- Series：TDV
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：100 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：300µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

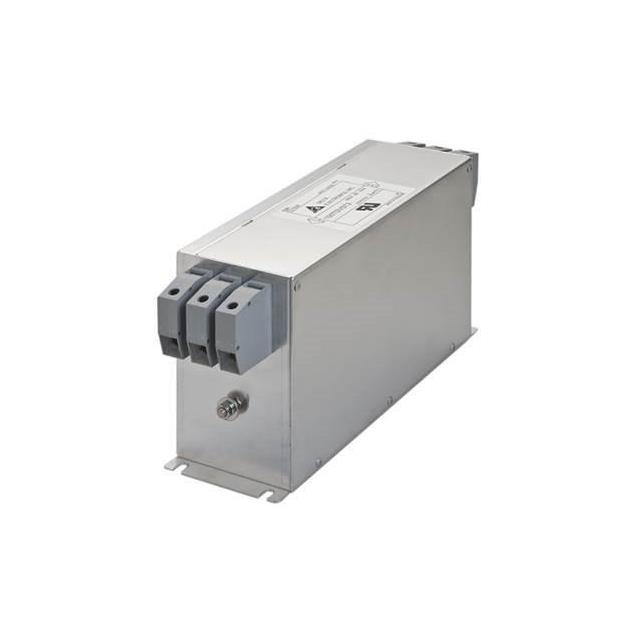

The Delta Electronics 100TDVST2 is a three-phase, three-wire power line filter designed for chassis mounting. It features a rated voltage of 480 VAC and supports a continuous current of 100 A. The component operates at standard frequencies of 50/60 Hz and utilizes terminal block connections for secure installation. Certified by cURus, ENEC, and SEMKO, this EMI/EMC filter ensures compliance with international safety and electromagnetic compatibility standards for industrial applications.
Feature Summary
- Provides effective EMI/EMC filtering for three-phase power systems
- Supports high current capacity up to 100 A at 480 VAC
- Features robust chassis mount design with terminal block connections
Applications
- Industrial automation machinery power conditioning
- Three-phase motor drive input filtering
- Factory equipment electromagnetic interference suppression
Procurement Notes
Verify the specific ordering suffix against official Delta Electronics documentation to ensure correct configuration. Confirm that the required certifications such as cURus or ENEC match the target market regulations. Check datasheet specifications for terminal block torque requirements and mounting dimensions prior to integration into control panels.
Selection Notes
Select this model when a three-phase, three-wire topology is required for 480 VAC systems. Ensure the application current does not exceed the 100 A rating. Consider the chassis mount form factor and terminal block interface for panel layout compatibility. Validate frequency range suitability for 50/60 Hz operations before finalizing the design.
Part Context
This component belongs to Delta Electronics' power line filter series, specifically engineered for industrial environments. It addresses electromagnetic interference issues in three-phase circuits. The product line emphasizes reliability and compliance with global safety standards for heavy-duty electrical infrastructure.
Replacement Considerations
Consult official Delta Electronics substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with other manufacturers without verifying electrical ratings and physical dimensions.
