100TYSS104

Overview

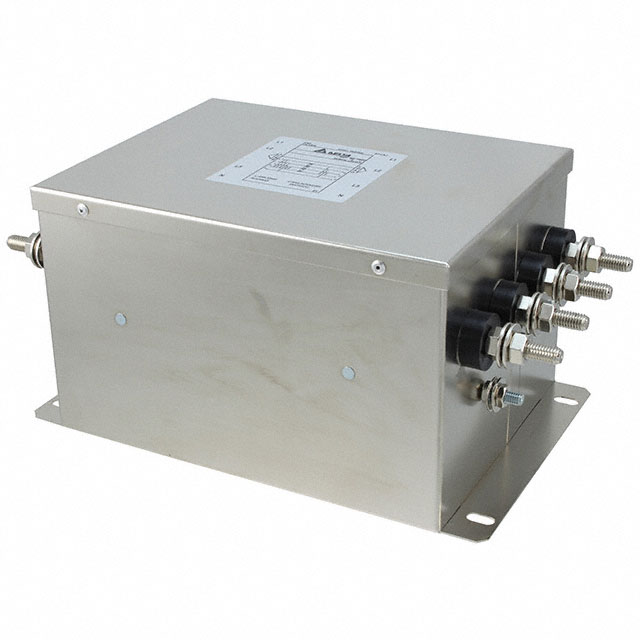

The Delta Electronics 100TYSS104 is a three-phase, four-wire AC line filter designed for screw mounting. It features a rated current of 100A and operates at voltages up to 690VAC. The unit provides significant noise attenuation across both differential and common modes, with typical insertion loss exceeding 80dB in the specified frequency range. Constructed with robust internal components, it ensures stable performance under high-load conditions while maintaining low leakage current characteristics suitable for sensitive industrial equipment.

Feature Summary

• Provides effective electromagnetic interference suppression for three-phase power systems
• Designed for secure screw-mount installation on standard panels
• Supports high continuous current loads without thermal degradation

Applications

• Industrial motor drives and variable frequency drives
• Large-scale manufacturing automation systems
• Medical imaging equipment requiring clean power supply

Procurement Notes

Verify the specific voltage rating and current capacity against your system requirements before ordering. Confirm that the mounting hole pattern matches your enclosure design. Ensure the input and output terminal orientations align with your wiring layout. Check for any required certifications for your target market. Validate that the filter's physical dimensions fit within the available space constraints.

Selection Notes

Select this component when high-current three-phase filtering is required. Consider the ambient temperature derating curves if operating in enclosed spaces. Evaluate the need for additional surge protection if the environment is prone to voltage spikes. Compare insertion loss specifications against regulatory limits for your application. Ensure compatibility with the upstream and downstream cable gauges.

Part Context

This part belongs to Delta Electronics' industrial power management portfolio. It complements other EMI filters in the series by offering higher current handling capabilities. The product line supports various mounting styles and electrical configurations to meet diverse global standards. It is engineered for reliability in harsh industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical footprint and electrical ratings carefully when considering alternative manufacturers. Cross-reference technical datasheets for equivalent performance metrics.
