100TYT8

Overview

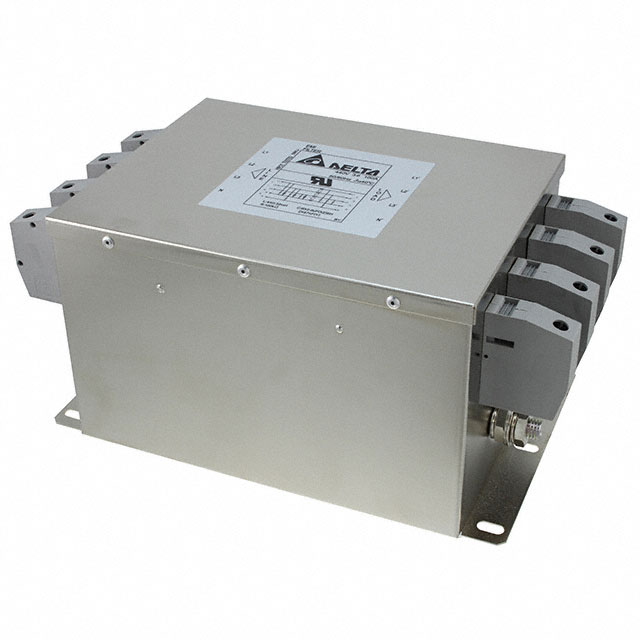

The Delta Electronics 100TYT8 is a single-stage, three-phase (wye-connected) EMC/EMI power line filter designed for chassis mounting with terminal block termination. It operates at an AC voltage rating of 480VAC and supports frequencies of 50/60Hz. The unit features a capacitance (Cx) of 2.0µF, neutral-to-ground capacitance (Cy) of 1.2nF, and inductance of 320µH. Constructed for general industrial applications, it ensures compliance with environmental standards including RoHS3 and REACH.

Feature Summary

• Provides effective electromagnetic interference suppression through integrated capacitive and inductive filtering stages
• Engineered for robust chassis installation using secure terminal block connections
• Designed for stable operation within standard industrial power frequency ranges

Applications

• Three-phase industrial machinery protection
• General factory automation systems
• Power distribution units requiring EMI mitigation

Procurement Notes

Verify the specific terminal block configuration and mounting hole dimensions against your chassis design before ordering. Confirm that the 480VAC rating aligns with your system's nominal voltage. Ensure the 320µH inductance value meets your circuit's impedance requirements. Check local regulatory compliance needs regarding RoHS3 and REACH status for your region.

Selection Notes

Select this model when a single-stage solution is sufficient for noise reduction in three-phase wye configurations. Compare the 320µH inductance and 2.0µF capacitance values against more complex multi-stage filters if higher attenuation is required. Consider the chassis mount form factor if panel integration is preferred over DIN rail or PCB mounting options.

Part Context

This component belongs to the TYT series of power line filters manufactured by Delta Electronics. The series includes various models differentiated by current ratings and capacitance values, such as the 16TYT8, 25TYT8, 36TYT8, and 50TYT8. The 100TYT8 represents a specific variant optimized for 480VAC three-phase environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing terminal blocks and mounting hardware when considering alternative manufacturers.
