Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 60POS GOLD
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：18; 12
- Number of Positions：60 (24 + 36 Power)
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.154" (3.90mm)
- Operating Temperature：-55°C ~ 105°C
Download product information
Overview

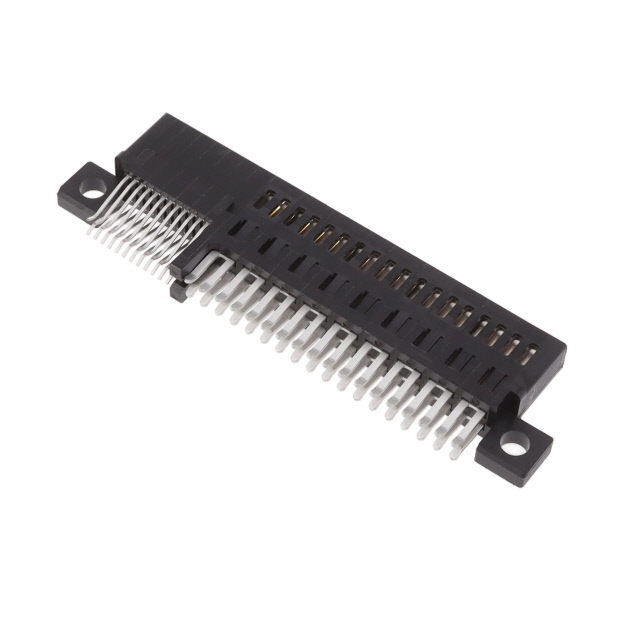

The Amphenol ICC (FCI) 10107844-002LF is a standard card edge connector designed for high-performance computing environments. It features a dual female configuration with 60 positions, specifically arranged as 36 signal and 24 power contacts. The connector utilizes gold plating on the contact surfaces to ensure reliable electrical performance. It supports straddle mount installation methods and operates within a temperature range of -55°C to +105°C.
Feature Summary
- Dual female contact configuration providing distinct signal and power pathways
- Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
- Straddle mount design optimized for secure board integration
Applications
- High-performance computing systems
- Server backplane interconnects
- Industrial control modules requiring robust signal integrity
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm exact pin count and plating specifications. Ensure compatibility with mating card edge thicknesses before procurement. Confirm RoHS compliance status through current manufacturer datasheets rather than distributor summaries.
Selection Notes
Select this component when a dual-sided card edge interface is required for mixed signal and power applications. Consider the straddle mount style for mechanical stability in high-vibration environments. Verify thermal operating limits align with system requirements given the wide operational range.
Part Context
This part belongs to the HPCE series from Amphenol ICC (FCI), formerly FCI. The series focuses on high-speed data transmission and power delivery for demanding electronic markets. Amphenol acquired FCI in 2016, integrating these specialized connector solutions into their broader portfolio.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Cross-reference with other Amphenol HPCE series connectors only if mechanical dimensions and electrical ratings match exactly.
