10107844-004LF

Overview

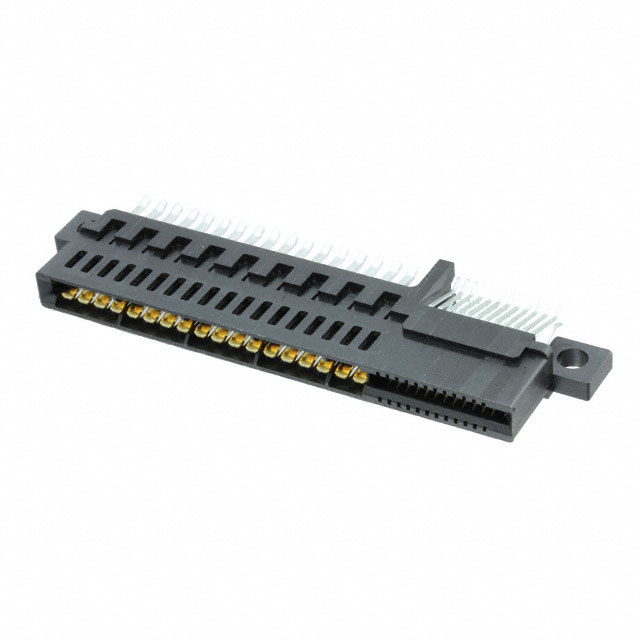

The Amphenol ICC (FCI) part number 10107844-004LF is a standard card edge connector designed for high-performance computing environments. It features a dual female contact configuration with a straddle mount installation style, ensuring robust mechanical stability on the printed circuit board. The connector supports a total of 60 positions, arranged in a dual row format to accommodate high-density signal routing requirements. Key electrical and physical parameters include a contact material composed of copper alloy, finished with gold plating to ensure reliable conductivity and corrosion resistance over extended operational lifecycles. The device operates within a temperature range of -55°C to 105°C, suitable for demanding industrial and commercial applications. The housing is constructed from black thermoplastic material, providing necessary insulation and structural integrity.

Feature Summary

• Dual female contact design with straddle mount installation for secure PCB attachment
• Gold-plated copper alloy contacts ensuring high reliability and low contact resistance
• High-density 60-position layout supporting complex signal interconnect needs

Applications

• High-performance computing systems requiring dense signal routing
• Industrial control boards operating in wide temperature ranges
• Commercial electronic equipment needing reliable card edge interfaces

Procurement Notes

Verify the specific ordering suffix and packaging type when sourcing this component. Confirm that the gold plating specification matches the application's conductivity requirements. Ensure the straddle mount footprint aligns precisely with the target PCB design to guarantee proper mechanical fit and electrical performance during assembly.

Selection Notes

Select this connector when a dual-row, high-pin-count interface is required for straddle-mounted applications. Consider the operating temperature range and gold contact finish for environments demanding long-term reliability. Evaluate the mechanical stability provided by the straddle mount against other mounting styles to ensure compatibility with the system's vibration and thermal stress profiles.

Part Context

This component belongs to the standard card edge connector family manufactured by Amphenol ICC (FCI). It is engineered for applications requiring robust electrical connections between a card and a backplane or motherboard. The dual female configuration allows for mating with male card edge fingers, providing a secure and repeatable connection interface essential for high-reliability electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
