10108777-10020RLF

Overview

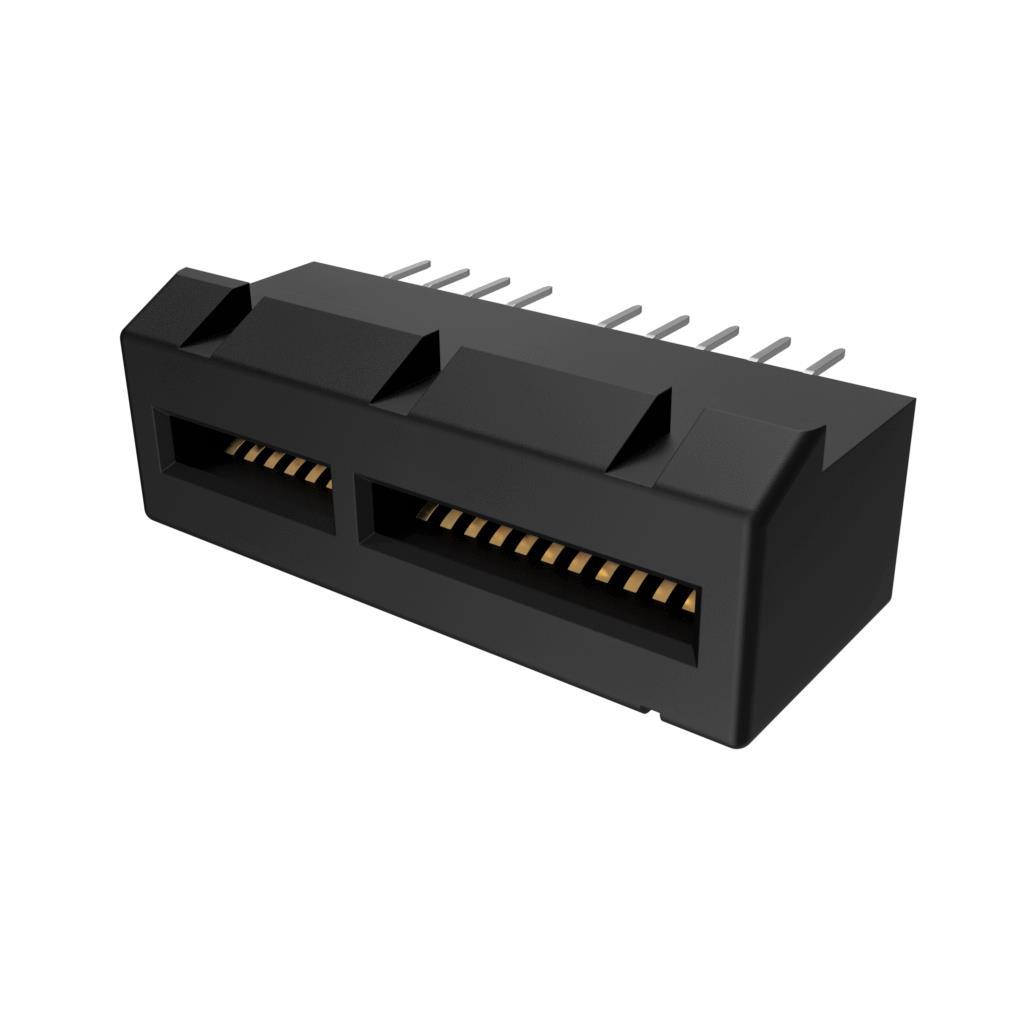

The 10108777-10020RLF is a PCI Express card edge connector manufactured by Amphenol ICC (FCI). It features 36 positions with a 0.039 inch (1.00 mm) pitch. The connector utilizes gold-plated contacts and is designed for female mating interfaces. It supports vertical through-hole mounting styles suitable for high-density signal transmission applications.

Feature Summary

• Supports PCI Express standard signal integrity requirements
• Features gold-plated contact surfaces for reliable conductivity
• Designed for vertical board-to-board interconnection

Applications

• PCI Express expansion cards
• High-speed data transmission modules
• Computer peripheral interface boards

Procurement Notes

Verify the specific ordering suffix to confirm plating thickness and material composition. Ensure compatibility with existing PCB stack-up dimensions and mating connector profiles before procurement. Confirm RoHS compliance status with the manufacturer for regulatory adherence.

Selection Notes

Select this component based on the required 36-position count and 1.00 mm pitch specifications. Evaluate the vertical mounting orientation against available board space constraints. Consider the gold plating requirement for long-term durability in high-cycle environments.

Part Context

This part belongs to the Amphenol FCI card edge connector family, acquired under the Amphenol ICC division. The series focuses on providing robust interconnect solutions for information technology and communication markets, emphasizing signal performance and mechanical reliability.

Replacement Considerations

Cross-reference with other 36-position PCI Express connectors from the same manufacturer. Verify identical pitch and mounting height to ensure mechanical fit without redesigning the host PCB layout.
