10108777-10103HLF

Overview

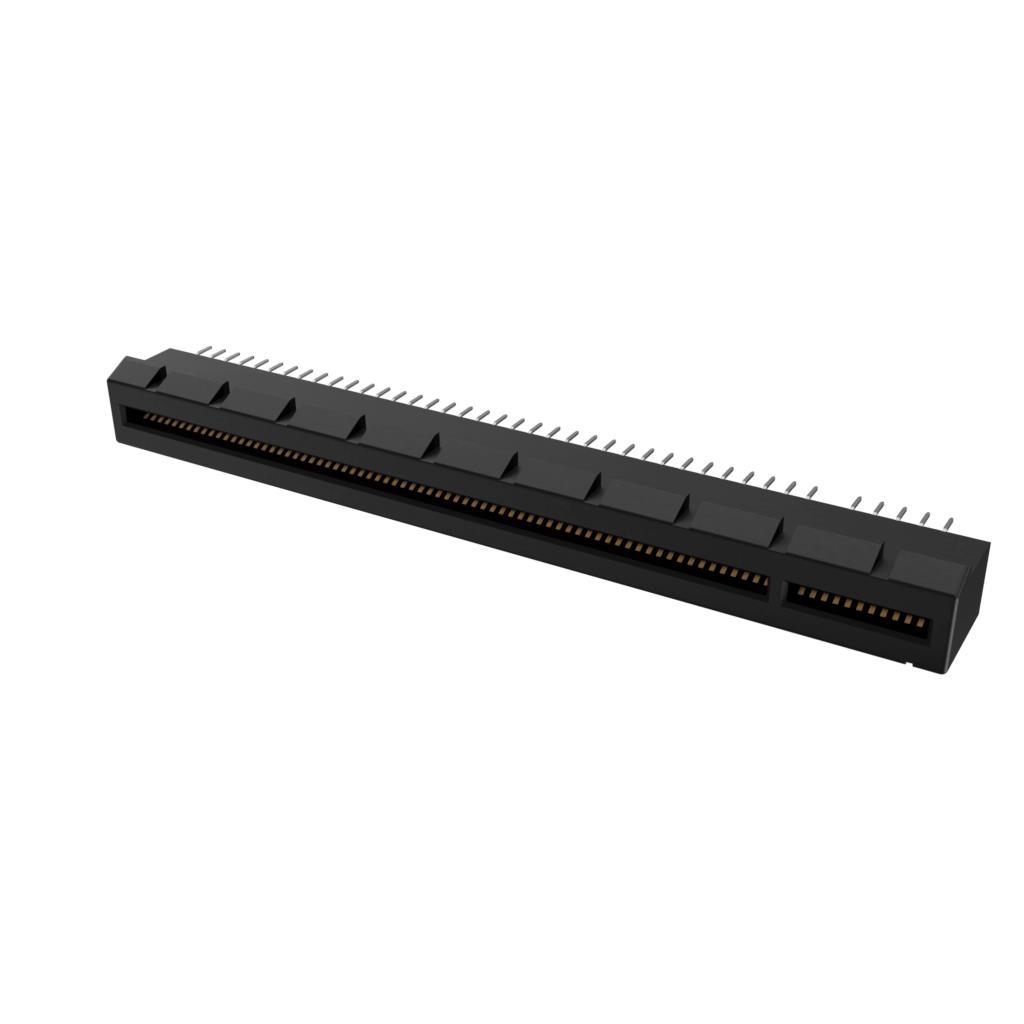

The Amphenol ICC (FCI) 10108777-10103HLF is a PCI Express card edge connector designed for vertical through-hole mounting. It features 164 positions with a 0.99mm pitch, providing robust connectivity for high-speed data applications. The connector utilizes copper alloy contacts with nickel plating and a nylon housing to ensure durability and reliable signal transmission in demanding electronic environments.

Feature Summary

• Vertical through-hole termination for secure PCB integration
• Copper alloy contacts with nickel plating for corrosion resistance
• Nylon housing material for structural stability

Applications

• PCI Express Gen 3 card edge connections
• High-speed data interface modules
• Electronic expansion cards requiring vertical mounting

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm pin configuration and contact plating specifications. Ensure compatibility with the target PCB stack-up and mating card dimensions before finalizing procurement orders to prevent integration issues.

Selection Notes

Select this component when a vertical orientation is required for PCI Express applications. Confirm that the 164-position count and 0.99mm pitch align with the system design requirements. Validate that the through-hole termination method matches the manufacturing capabilities of the assembly line.

Part Context

This part belongs to the Amphenol FCI PCI Express connector family, engineered for high-reliability computing and communication systems. It supports standard PCI Express form factors, ensuring interoperability with industry-standard expansion slots and motherboards in server and workstation architectures.

Replacement Considerations

Cross-reference with 10108777-11103ZLF for potential functional equivalents within the same product line. Verify mechanical dimensions and electrical characteristics to ensure direct substitution without redesigning the host board layout.
