Product Detailed Parameters
- Description：CONN PCI EXP FMALE 164POS 0.039
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：PCI Express™
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：164
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.039" (1.00mm)
- Read Out：Dual
- Features：Board Guide, Locking Ramp
- Mounting Type：Through Hole
- Termination：Solder, Staggered
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：15.0µin (0.38µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：-
- Operating Temperature：-
Download product information
Overview

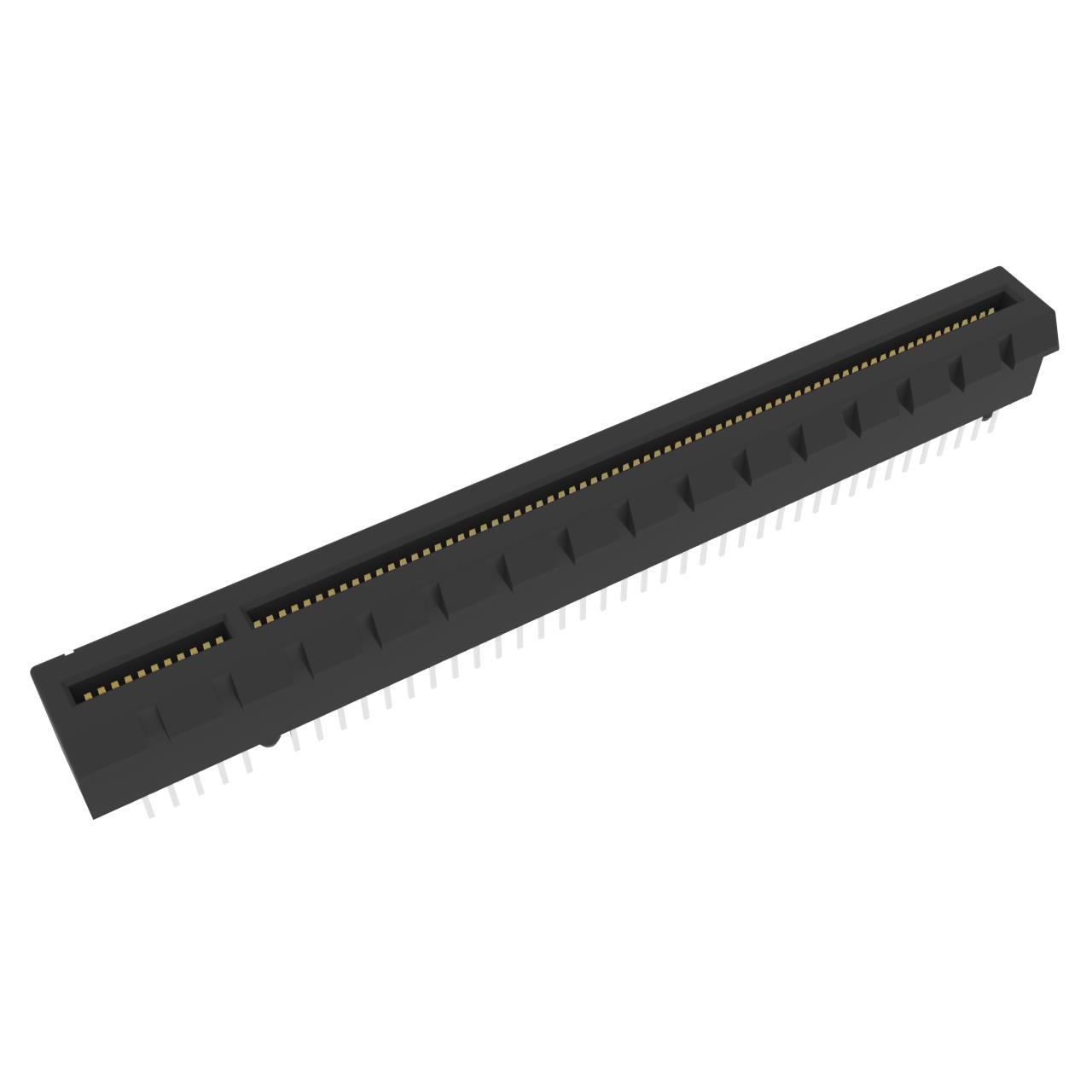

The Amphenol ICC (FCI) 10108777-10113QLF is a PCI Express female card edge connector designed for vertical through-hole mounting. It features 164 positions with a 0.99 mm pitch, accommodating thick PCBs up to 2.36 mm. The housing is constructed from black glass-filled polyamide (PA/Nylon), and contacts are gold-plated copper alloy. Rated at 1.1 A per contact, it supports high-speed signal integrity for PCIe applications.
Feature Summary
- Vertical card edge interface for secure board-to-board connection
- Gold-plated contacts ensure reliable signal transmission
- Glass-filled polyamide insulation provides structural stability
Applications
- PCI Express expansion cards
- High-speed data transfer modules
- Server and workstation peripheral interfaces
Procurement Notes
Verify the specific suffix 'QLF' against the manufacturer's current datasheet to confirm lead-free compliance and exact pin configuration. Ensure the ordering part number matches the required pitch and row count for your PCB layout. Contact the manufacturer or authorized distributors for current availability and factory order requirements.
Selection Notes
Select this component when a vertical, through-hole PCIe connector with a 164-position layout is required. Confirm that the PCB thickness falls within the supported range of 2.36 mm. Verify that the 0.99 mm pitch aligns with the mating card edge design. Consider thermal management and signal integrity requirements for high-speed PCIe generation compatibility.
Part Context
This connector belongs to the Amphenol FCI PCI Express series, which provides robust interconnect solutions for high-speed digital applications. The 10108777 base product line is engineered for reliability in demanding computing environments, supporting various PCIe generations through optimized contact geometry and material selection.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's cross-reference guide for compatible alternatives if this specific model is discontinued or unavailable.
