10112690-G03-02ALF

Headers, Male Pins Overview

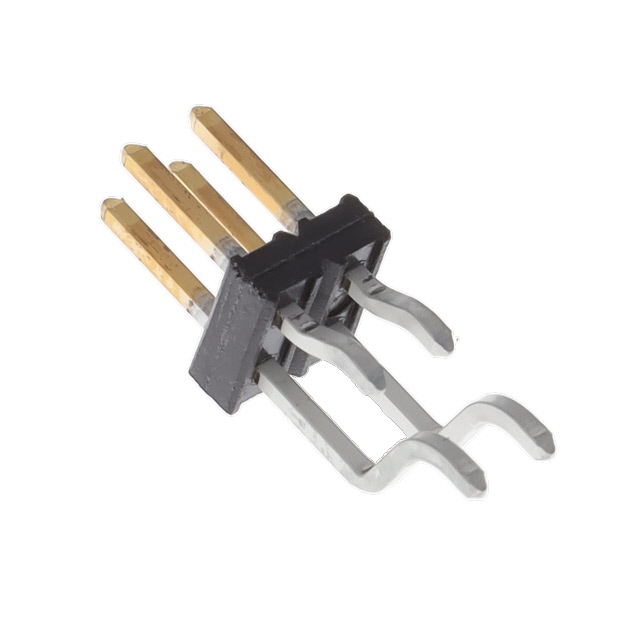

The Amphenol ICC (FCI) 10112690-G03-02ALF is a surface mount right-angle header connector from the Minitek series. It features 4 positions with a 2.00mm row spacing and 1.27mm pin pitch. The contacts are gold-plated phosphor bronze, rated for 3A at 200V. Designed for compact PCB layouts, it utilizes thermoplastic insulation and offers reliable signal transmission in space-constrained electronic applications.

Headers, Male Pins Feature Summary

• Right-angle surface mount design optimizes vertical board space
• Gold-plated contacts ensure stable electrical conductivity
• Compact 2.00mm row spacing suits dense circuit layouts

Headers, Male Pins Applications

• Consumer electronics internal interconnects
• Portable device motherboard connections
• Compact industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix ALF against current manufacturer datasheets to confirm plating specifications and RoHS compliance status. Ensure the right-angle orientation matches the PCB footprint requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when right-angle routing is necessary to save vertical clearance. Confirm that the 3A current rating and 200V voltage limit meet the circuit requirements. Validate the 2.00mm row spacing against adjacent components on the layout.

Headers, Male Pins Part Context

This part belongs to the Minitek family of connectors, which focuses on low-profile solutions for tight spaces. The series provides various configurations for wire-to-board and board-to-board connections, emphasizing reliability in small form factor designs.

Headers, Male Pins Replacement Considerations

Check for direct cross-references within the Minitek product line. Verify mechanical dimensions and contact alignment if substituting with other manufacturers' headers to ensure compatibility with existing PCB footprints.
