10112690-G03-06ULF

Headers, Male Pins Overview

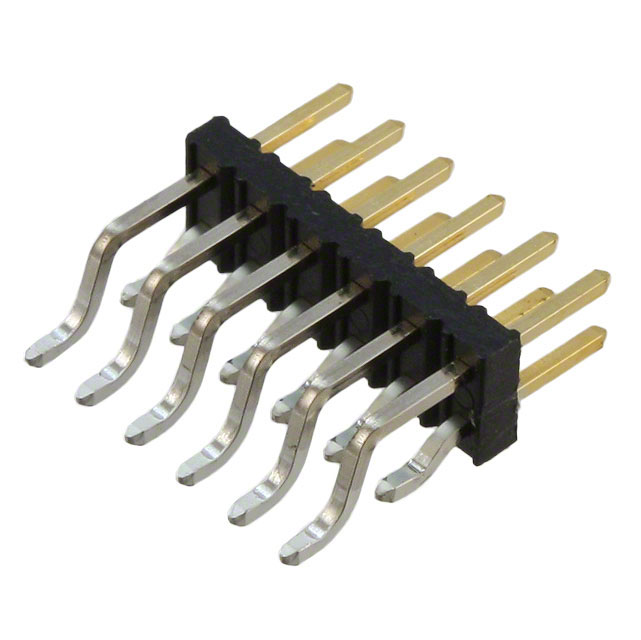

The Amphenol ICC (FCI) 10112690-G03-06ULF is a Minitek series pin header designed for board-to-board and wire-to-board connections. It features a 2.00mm pitch with 12 contacts arranged in a double-row configuration. The component utilizes surface mount technology with right-angle termination for efficient PCB integration. Electrical specifications include a current rating of 3A and a voltage rating of 200V. Contacts are gold-plated copper alloy, with a post finish thickness of 78.7µin (2.00µm). The housing is black thermoplastic, operating within a temperature range of -40°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact board-to-board and wire-to-board applications
• Gold-plated copper alloy contacts ensuring reliable electrical performance
• Thermoplastic insulation housing providing structural stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic device assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the right-angle surface mount orientation matches the target PCB layout requirements. Ensure the 12-position double-row configuration aligns with the mating connector specifications to guarantee proper mechanical fit and electrical continuity during installation.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for space-constrained designs. The 2.00mm pitch offers a balance between density and manufacturability. Consider the 3A current rating and 200V voltage limit to ensure they meet the circuit's operational demands. Verify compatibility with mating receptacles from the same Minitek series to maintain signal integrity and mechanical reliability.

Headers, Male Pins Part Context

This part belongs to the Amphenol FCI Minitek family, which specializes in 2.00mm pitch connectors. The Minitek series is engineered for high-density applications requiring robust board-to-board and wire-to-board solutions. These connectors are known for their space-saving profiles and reliable performance in various consumer and industrial electronics environments.

Headers, Male Pins Replacement Considerations

Compatible alternatives include other Minitek series headers with identical 2.00mm pitch, 12 positions, and right-angle surface mount characteristics. Ensure any substitute maintains the same contact material, plating thickness, and voltage/current ratings to preserve system functionality.
