10112690-G03-07ULF

Headers, Male Pins Overview

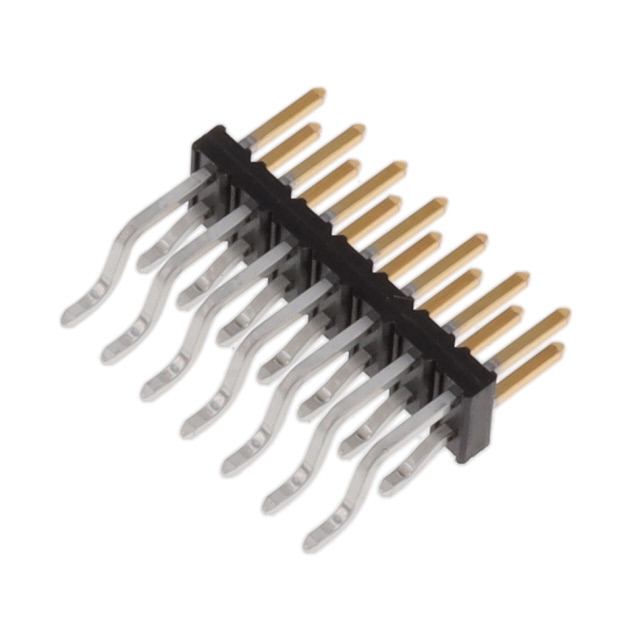

The Amphenol ICC (FCI) part number 10112690-G07ULF is a Minitek series connector header designed for surface mount, right-angle installation. It features 14 positions arranged in a dual-row configuration with a 2.00mm pitch. The contacts are constructed from copper alloy and terminate via soldering. The housing is made of black thermoplastic material. Electrical specifications include a voltage rating of 200V and a current rating of 3A. The component operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact board integration
• Dual-row header configuration providing high density connectivity
• Thermoplastic housing ensuring structural stability and insulation

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board signal routing
• General electronic equipment internal connections

Headers, Male Pins Procurement Notes

Verify the specific suffix and pin count against official Amphenol FCI documentation before ordering. Confirm that the 14-position variant matches the design requirement. Check for RoHS compliance status as indicated in the latest datasheet. Ensure storage conditions maintain integrity prior to assembly.

Headers, Male Pins Selection Notes

Select this component when a right-angle, surface-mount header is required for low-voltage signal transmission. The 2.00mm pitch suits applications needing moderate spacing between pins. Verify that the 3A current rating meets the circuit load requirements. Consider the operating temperature range for environmental compatibility.

Headers, Male Pins Part Context

This part belongs to the Minitek family of connectors produced by Amphenol ICC (FCI). The Minitek series is widely used for wire-to-board and board-to-board applications. These connectors are known for their reliability and cost-effectiveness in consumer and industrial electronics. The brand transition from FCI to Amphenol maintains product lineage.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 14-position, 2.00mm pitch, right-angle headers from compatible manufacturers. Ensure mechanical dimensions and electrical ratings match exactly. Cross-reference with Amphenol's official replacement guide for verified alternatives.
