10112690-G03-10ULF

Headers, Male Pins Overview

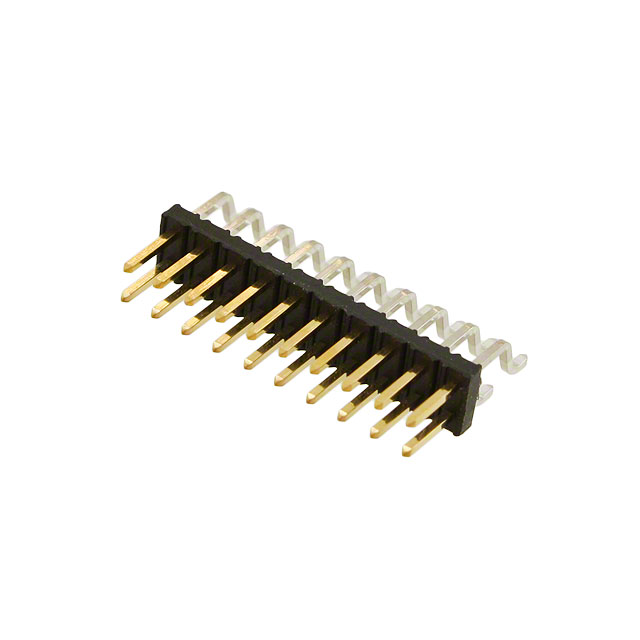

The Amphenol ICC (FCI) part number 10112690-G03-10ULF is a Minitek series unshrouded header designed for board-to-board and wire-to-board connections. It features a 2mm pitch with 20 contacts arranged in a double row configuration. The connector utilizes gold-plated copper alloy terminals and a thermoplastic housing, supporting a voltage rating of 650V. Designed for surface mount installation, it offers a right-angle orientation to facilitate compact circuit board layouts.

Headers, Male Pins Feature Summary

• Double-row header design with 2mm spacing for high-density interconnects
• Right-angle surface mount termination for space-efficient PCB integration
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic housing material providing structural stability

Headers, Male Pins Applications

• Data communication equipment interfaces
• Industrial application control boards
• Compact electronic device internal connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm terminal plating thickness and insulation material properties. Ensure compatibility with mating receptacles regarding pin count and row alignment. Confirm that the right-angle surface mount footprint matches the target PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 2mm pitch header is required for applications demanding a 650V rating. The double-row configuration supports 20 contacts, suitable for moderate density needs. Consider the right-angle form factor for vertical clearance constraints. Verify that the unshrouded design aligns with the assembly process and mating connector type.

Headers, Male Pins Part Context

This component belongs to the Minitek family produced by Amphenol ICC (formerly FCI). The Minitek series provides cost-effective connectivity solutions for various electronic systems. As an FCI product, it adheres to standards for durability and signal integrity established by the manufacturer's engineering guidelines for board-level interconnects.

Headers, Male Pins Replacement Considerations

Cross-reference with other Minitek series headers from Amphenol ICC for potential substitutes. Verify identical pin counts, pitch dimensions, and mounting styles before substitution. Ensure any alternative part meets the same electrical ratings and mechanical specifications.
