10114587-004LF

Overview

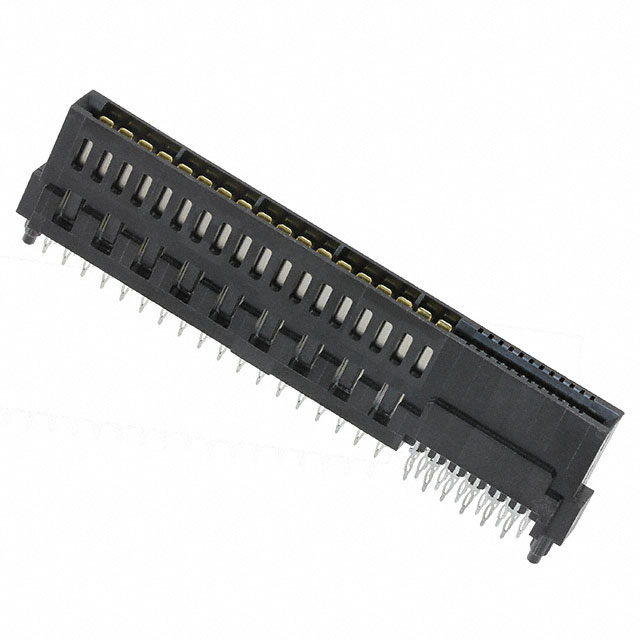

The Amphenol ICC (FCI) 10114587-004LF is a dual-edge board connector designed for high-density applications. It features 60 positions, configured as 24 signal and 36 power contacts, utilizing a female socket interface. The connector supports non-specified double-sided card insertion with a standard thickness of 0.062 inches (1.57mm). Constructed with copper alloy terminals finished in gold or GXT™ gold plating, it ensures reliable electrical performance. The housing is made of black thermoplastic plastic, rated for operating temperatures between -55°C and 105°C.

Feature Summary

• Dual-edge design accommodates non-specified double-sided cards for versatile board integration.
• Integrated board lock mechanism secures the connector to the PCB during operation.
• High-density configuration separates signal and power circuits within a single housing.

Applications

• High-performance computing server backplanes
• Telecommunications infrastructure equipment
• Industrial control systems requiring robust power distribution

Procurement Notes

Verify the specific ordering suffix and environmental compliance status against the latest manufacturer datasheet before procurement. Confirm that the required terminal count matches the 60-position specification. Ensure compatibility with the target card thickness of 0.062 inches. Check for any recent product change notifications that may affect material composition or packaging details.

Selection Notes

Select this component when a dual-edge female connector is required for mixed signal and power routing. The 60-position layout supports 24 signal lines and 36 power pins. Verify that the application environment falls within the -55°C to 105°C operating range. Ensure the PCB design accommodates through-hole mounting and provides sufficient space for the board lock feature.

Part Context

This part belongs to the HPCE® series from Amphenol ICC (FCI), focusing on high-performance connectivity solutions. The series is engineered for demanding environments where signal integrity and power delivery are critical. The 10114587-004LF represents a specific configuration within this family, optimized for dual-edge board interfaces.

Replacement Considerations

Consult official Amphenol ICC cross-reference documents for verified substitute part numbers. Do not assume mechanical interchangeability with other series without verifying pinout and housing dimensions.

FAQ

What is the contact configuration for this connector?

The connector has 60 total positions, divided into 24 signal contacts and 36 power contacts.

Is this connector compatible with double-sided cards?

Yes, it is designed for non-specified double-sided card insertion.
