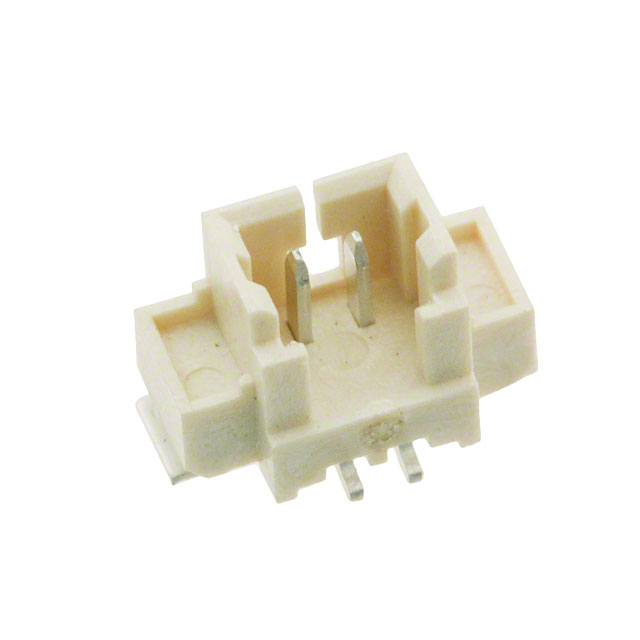

10114828-10102LF

10114828-10102LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER SMD 2POS 1.25MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10114828-10102LF

• Description：CONN HEADER SMD 2POS 1.25MM
• Series：10114828
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.049" (1.25mm)
• Number of Positions：2
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 3 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：0.089" (2.25mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.185" (4.70mm)
• Contact Shape：Rectangular
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：Solder Retention
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：1A
• Voltage Rating：125V

Headers, Male Pins datasheet and documents for 10114828-10102LF
