10114828-10105LF

Headers, Male Pins Overview

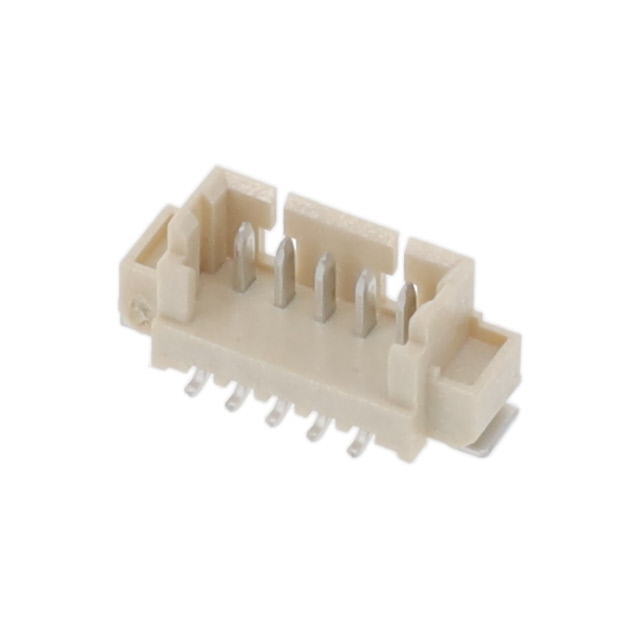

The Amphenol ICC (FCI) 10114828-10105LF is a wire-to-board header connector designed for surface mount applications. It features a right-angle configuration with a 1.25mm pitch and five positions. The housing is constructed from liquid crystal polymer (LCP), providing UL94 V-0 flammability rating. Contacts are made of copper alloy with tin plating on the post interface to ensure reliable soldering. This component supports automated assembly processes while maintaining electrical continuity in compact electronic designs.

Headers, Male Pins Feature Summary

• Surface mount right-angle design facilitates efficient PCB layout and space optimization
• Tin-plated contacts ensure secure solder retention during reflow processes
• Liquid crystal polymer insulation offers high thermal stability and flame resistance

Headers, Male Pins Applications

• Compact consumer electronics assemblies requiring low-profile connections
• Industrial control boards utilizing surface mount technology
• Telecommunications equipment with dense wiring requirements

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact finish and packaging type, as variations exist within the series. Ensure compatibility with standard surface mount reflow profiles. Confirm that the right-angle orientation matches the board layout constraints. Check for RoHS compliance status if required by project specifications. Validate pin count and pitch against schematic requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when a surface mount solution is preferred over through-hole for reliability and automation. The right-angle form factor allows for perpendicular cable routing, saving vertical space. Tin plating is suitable for general-purpose applications where gold is not strictly necessary. Consider the LCP material properties for environments requiring higher heat resistance compared to standard nylon housings.

Headers, Male Pins Part Context

This part belongs to the Minitek® 1.25mm wafer series, a widely used family of connectors known for their compact size and robust performance. The series includes various configurations for different mounting styles and pin counts. Amphenol ICC (FCI) designs these components to meet stringent industry standards for signal integrity and mechanical durability in modern electronic systems.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 1.25mm pitch SMT headers from compatible manufacturers, provided the footprint and pin count match exactly. Verify that alternative parts maintain the same right-angle orientation and tin-plated contact finish. Ensure the replacement housing material also meets UL94 V-0 ratings for safety compliance.
