10114829-10102LF

Headers, Male Pins Overview

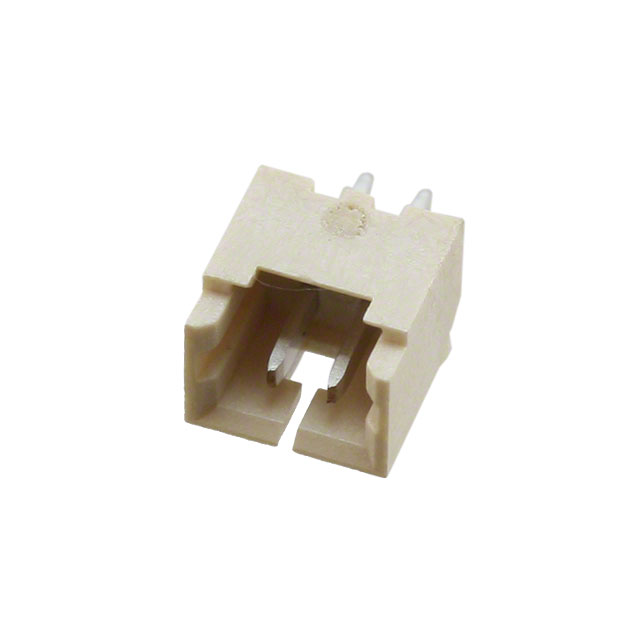

The Amphenol ICC (FCI) 10114829-10102LF is a wire-to-board header connector from the Minitek® Multipitch™ series. It features a 2-position configuration with a 1.25mm (0.049 inch) mating pitch. The component utilizes through-hole vertical termination and includes a four-wall shroud for alignment. Contact materials consist of phosphor bronze with gold plating, while the insulator is made of liquid crystal polymer rated UL94 V-0. It supports a maximum current of 1A at 125V.

Headers, Male Pins Feature Summary

• Four-wall shrouded design ensures precise pin alignment during mating
• Through-hole vertical termination provides secure PCB mounting
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Liquid crystal polymer insulation offers high thermal stability

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Signal routing in data communication equipment
• Internal connections within industrial control systems
• Low-voltage power distribution in compact devices

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm packaging type, as this part number may be available in tape and reel or cut tape formats depending on quantity requirements. Confirm that the lead time aligns with production schedules, as availability can vary by distributor. Ensure compatibility with existing tooling for through-hole assembly processes before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when a low-profile, vertically oriented header is required for 1.25mm pitch applications. The four-wall shroud is critical for preventing misalignment in dense layouts. Verify that the 1A current rating meets the circuit's electrical demands. Consider the through-hole mounting style if surface-mount alternatives are not suitable for the mechanical stress requirements of the application.

Headers, Male Pins Part Context

This component belongs to the Minitek® Multipitch™ family, which focuses on cost-effective, high-density interconnect solutions. The 10114829 series specifically addresses wire-to-board needs with standardized dimensions. Amphenol ICC (FCI) designs these connectors to balance performance with manufacturing efficiency, making them suitable for mass-produced electronic assemblies requiring reliable signal integrity.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze with a gold plating finish to ensure conductivity and corrosion resistance.

Is this connector polarized?

Yes, the four-wall shroud design provides keying capabilities to prevent incorrect mating orientation.
