10114829-10103LF

Headers, Male Pins Overview

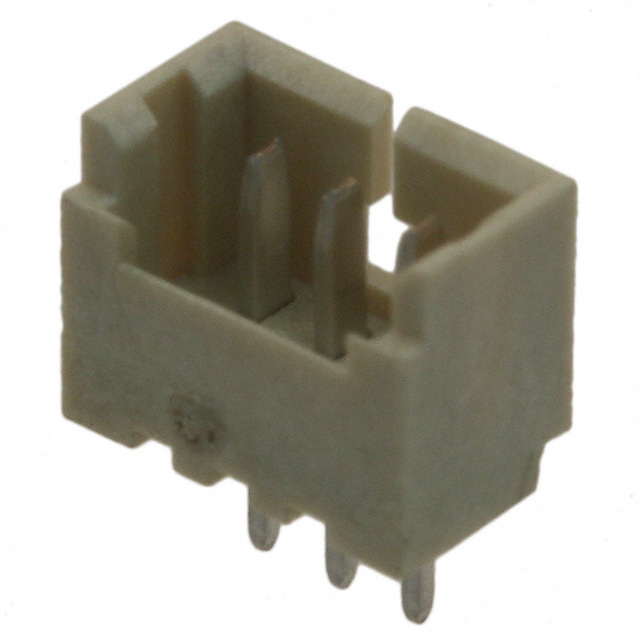

The Amphenol ICC (FCI) part number 10114829-10103LF is a pin header connector belonging to the 10114829 series. It features a vertical through-hole mounting style with three positions and a 1.25mm mating pitch. The connector utilizes phosphor bronze contacts with tin plating for both mating surfaces and tails, housed in natural liquid crystal polymer (LCP). Rated for 1A at 125V, it operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Vertical board-to-cable/wire configuration with pin lock retention
• Four-wall shielding design for enhanced protection
• Tin-plated phosphor bronze contacts for reliable conductivity
• Natural LCP insulation ensuring high thermal stability

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific position count against project requirements, as this component is a 3-position variant within the 10114829 series. Confirm that the tin-plated contact finish aligns with soldering processes and environmental exposure limits. Ensure the vertical orientation and through-hole termination method are compatible with the target PCB layout and assembly equipment specifications.

Headers, Male Pins Selection Notes

Select this connector when a low-profile, vertically oriented header is required for board-to-wire applications. The 1.25mm pitch allows for moderate density without excessive miniaturization challenges. Consider the tin plating for standard lead-free soldering compatibility and verify that the 1A current rating suffices for the intended circuit loads under specified operating temperatures.

Headers, Male Pins Part Context

This component is part of the Minitek 1.27mm connector system family, designed for cost-effective and durable wire-to-board connections. The 10114829 series offers various position counts and orientations, providing flexibility for different assembly needs. As an FCI Basics product, it emphasizes reliability and ease of use in consumer and industrial electronics manufacturing environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 1.25mm pitch vertical pin headers from the same manufacturer series, such as 10114829-10106LF for increased position counts. Cross-reference mechanical dimensions and contact plating specifications to ensure functional equivalence in existing designs.
