10114829-10105LF

Headers, Male Pins Overview

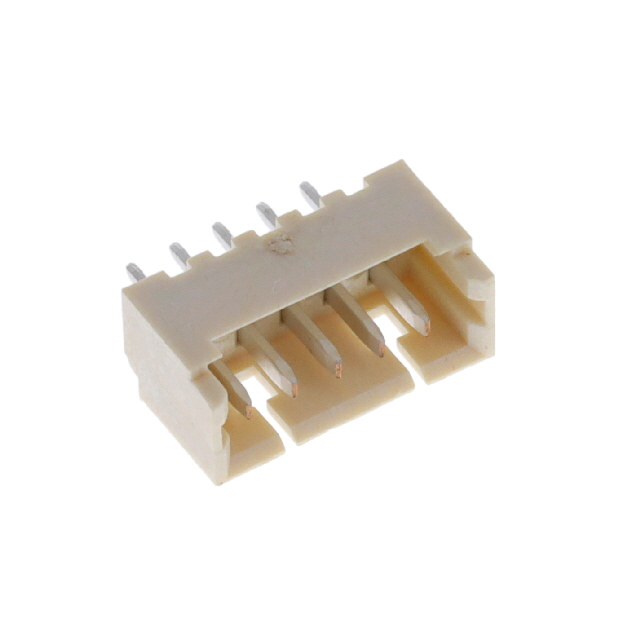

The Amphenol ICC (FCI) 10114829-10105LF is a pin header connector designed for through-hole, right-angle mounting. It features a 1.25mm pitch and provides 5 positions in a single row configuration. The contacts are gold-plated phosphor bronze pins with a mating surface thickness of 15.0µin (0.38µm). Constructed from liquid crystal polymer (LCP), the housing offers natural insulation color and UL94 V-0 flammability rating. Rated for 1A current at 125V, it operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole termination facilitates compact board layout integration.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
• Liquid crystal polymer housing provides high thermal stability and UL94 V-0 flame retardancy.

Headers, Male Pins Applications

• Board-to-cable or wire interconnections
• General electronic equipment internal wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm availability and lead times. Ensure that the required contact count and pitch match the design specifications. Check for RoHS compliance status if environmental regulations apply to the target application. Confirm mounting orientation requirements prior to ordering.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for limited space constraints. The 1.25mm pitch suits moderate density applications compared to finer pitches. Verify that the 1A current rating meets the circuit load requirements. Consider the through-hole mounting method for robust mechanical retention on the PCB.

Headers, Male Pins Part Context

This connector belongs to the Minitek® 1.25mm series by Amphenol ICC (FCI). The series focuses on cost-effective, reliable wire-to-board solutions. It utilizes standard rectangular contact shapes and pin-locking mechanisms for secure mating. The product line supports various position counts while maintaining consistent electrical performance across the family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.25mm pitch, 5-position count, right-angle orientation, and through-hole termination. Compatible alternatives include other manufacturers' headers with identical LCP housing and gold-plated phosphor bronze contacts. Ensure mechanical dimensions and locking features are compatible with existing PCB layouts.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made of phosphor bronze with a gold plating finish.

Is this connector suitable for high-temperature environments?

Yes, it is rated for operation up to 105°C and uses UL94 V-0 rated LCP insulation.
