10114829-10106LF

Headers, Male Pins Overview

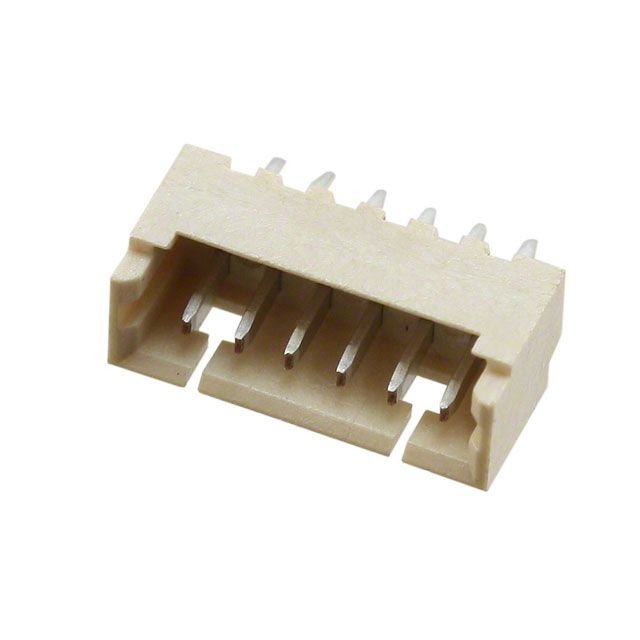

The Amphenol ICC (FCI) 10114829-10106LF is a wire-to-board header connector featuring a 1.25mm pitch and six positions in a single row. Designed for through-hole vertical mounting, it utilizes phosphor bronze contacts with tin plating on both the termination and mating surfaces. The housing is constructed from natural liquid crystal polymer (LCP), rated UL94 V-0 for flammability. It supports a maximum current of 1A at 125V and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for direct PCB integration
• Tin-plated phosphor bronze contacts ensuring reliable signal transmission
• Four-wall shrouded design providing polarized and secure connection
• Liquid crystal polymer insulation offering high thermal stability

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Signal routing in industrial control systems
• Internal power distribution in compact equipment
• Data communication device assembly

Headers, Male Pins Procurement Notes

Verify that the specific order matches the 10114829 series designation, as this indicates the vertical orientation and 1.25mm pitch configuration. Confirm the contact plating specification is tin rather than gold, which differs from other variants in the broader product family. Ensure the packaging type aligns with production requirements, as this component is available in cut tape or Digi-Reel formats suitable for automated placement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertically oriented header is required for space-constrained designs. The 1.25mm pitch allows for dense circuit layouts while maintaining adequate spacing for safety standards. Consider the LCP material properties for applications requiring resistance to soldering heat and environmental stress. Verify that the 1A current rating meets the electrical load requirements of the target circuit paths.

Headers, Male Pins Part Context

This part belongs to the Minitek® Multipitch™ line by Amphenol ICC (FCI), focusing on cost-effective wire-to-board solutions. The 10114829 series specifically addresses vertical mounting needs, contrasting with right-angle variants like the 10114831 series. It serves as a standard interconnect solution for general-purpose electronic assemblies where reliability and ease of manufacturing are prioritized over high-speed signal integrity.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include the 10114829-10104LF (4-position) and 10114829-10108LF (8-position). For identical specifications but different packaging, verify availability of bulk reel options if cut tape is unsuitable. Cross-reference with other manufacturers' 1.25mm vertical headers only if mechanical dimensions and electrical ratings are strictly matched.
