10114829-10108LF

Headers, Male Pins Overview

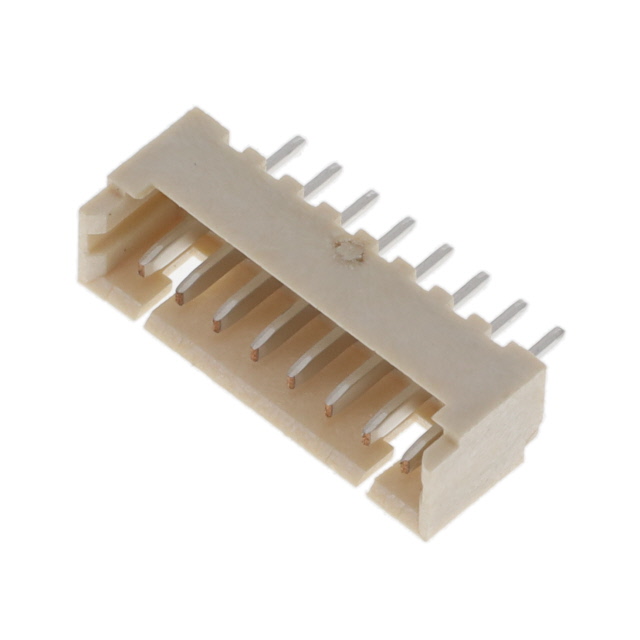

The Amphenol ICC (FCI) part number 10114829-10108LF is a pin header connector belonging to the 10114829 series. It features an 8-position, single-row configuration with a 1.25mm pitch. Designed for board-to-cable or wire applications, this component utilizes through-hole right-angle termination. The housing is constructed from natural liquid crystal polymer (LCP) rated UL94 V-0. Contacts are made of phosphor bronze with tin plating on both the mating and post surfaces. The connector supports a maximum current of 1A at 125V and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Features a four-wall shroud design for enhanced signal shielding and alignment stability during mating.
• Incorporates pin lock mechanisms to secure the connector against vibration and mechanical stress.
• Utilizes a right-angle through-hole mounting style to optimize vertical space on printed circuit boards.

Headers, Male Pins Applications

• Board-to-cable interconnections in industrial control systems
• Signal routing in telecommunications equipment
• Internal wiring connections in consumer electronics

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official manufacturer documentation to ensure correct contact plating and packaging options. Confirm that the required pin count matches the eight-position specification. Check for RoHS compliance status if restricted substances are mandated by project requirements. Ensure compatibility with mating receptacles regarding pitch and locking mechanism type before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-cost, reliable solution is needed for moderate density signal transmission. The 1.25mm pitch allows for compact layouts while maintaining adequate spacing. Consider the right-angle form factor for space-constrained enclosures where vertical clearance is limited. Verify that the 1A current rating meets the electrical load requirements of the target application circuit.

Headers, Male Pins Part Context

This connector is part of the broader Minitek family of wire-to-board solutions offered by Amphenol ICC. The 10114829 series specifically targets cost-sensitive applications requiring durable plastic insulation and standard tin plating. It serves as a fundamental interconnect element for general-purpose electronic assemblies where high-speed data transmission is not the primary requirement.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 1.25mm pitch headers from the same series with different pin counts, such as 10114829-10106LF or 10114831-12104LF. Cross-brand replacements must match the 1.25mm pitch, through-hole right-angle termination, and four-wall shroud geometry to ensure mechanical fit.
