10114829-10110LF

Headers, Male Pins Overview

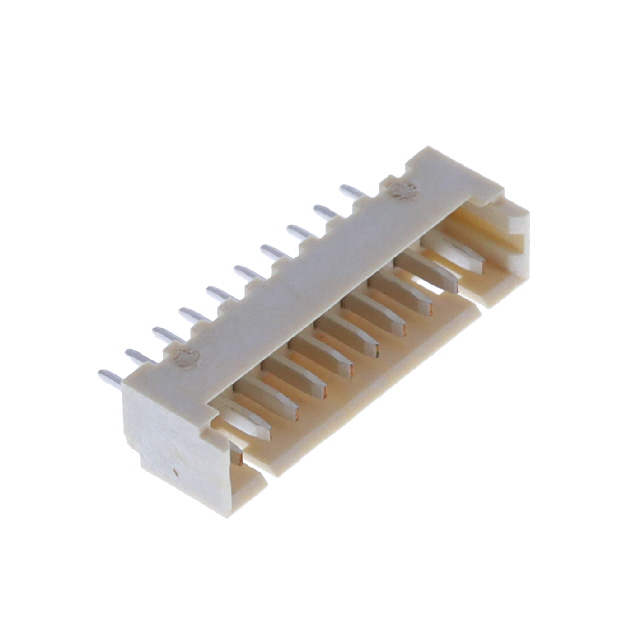

The Amphenol ICC (FCI) 10114829-10110LF is a pin header connector from the 10114829 series, designed for board-to-cable or wire applications. It features a 10-position configuration with a 0.049-inch (1.25mm) mating pitch. The connector utilizes through-hole vertical termination and includes a pin lock fastening type. Constructed with phosphor bronze contacts and liquid crystal polymer insulation, it offers a natural color finish. Rated for 1A current and 125V voltage, it operates within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Features a four-wall shielded housing design for enhanced signal integrity and noise protection.
• Incorporates a pin lock mechanism to ensure secure mating and retention between header and receptacle.
• Utilizes liquid crystal polymer insulation material for high thermal stability and low moisture absorption.

Headers, Male Pins Applications

• Board-to-cable interconnections in industrial control systems
• Wire-to-board connections in consumer electronics assemblies
• Signal transmission links in compact data processing equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix and packaging designation against the manufacturer's latest datasheet to confirm terminal plating and reel specifications. Ensure compatibility with mating receptacles regarding pin count and pitch. Cross-reference RoHS compliance status with current environmental regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical through-hole header with a 1.25mm pitch is required for reliable board-to-wire connections. Consider the four-wall shielding requirement and pin lock feature for applications needing robust mechanical retention. Verify that the 1A current rating and 125V voltage limits align with the circuit design parameters.

Headers, Male Pins Part Context

This part belongs to the Minitek 1.25mm line produced by Amphenol ICC (FCI), formerly Framatome Connectors International. The series provides cost-effective, durable solutions for various interconnect needs. As part of the broader FCI portfolio acquired by Amphenol, these connectors support diverse electronic assembly requirements across multiple industries.

Headers, Male Pins Replacement Considerations

Consult official substitution guides for equivalent parts within the same pitch and series family. Verify mechanical dimensions and electrical ratings match before replacing.
