10114829-10204LF

Headers, Male Pins Overview

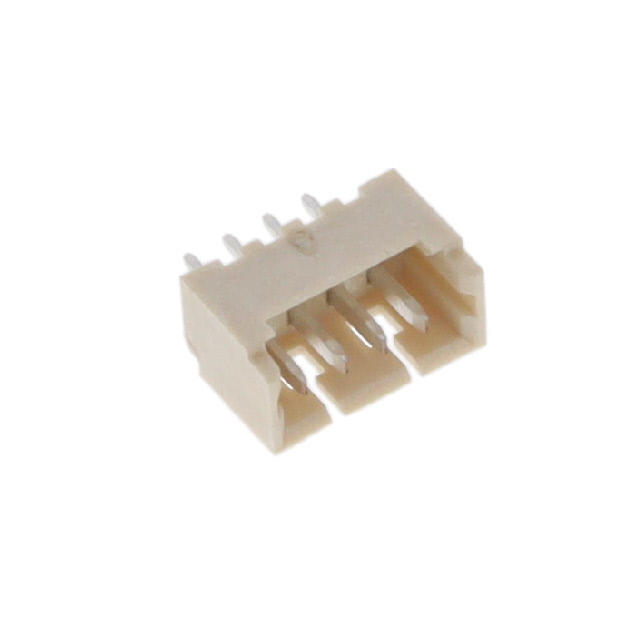

The Amphenol ICC (FCI) part number 10114829-10204LF is a wire-to-board header connector from the FitMate™ series. It features a 1.25mm pitch, four positions, and a single row configuration. Designed for through-hole mounting at a right angle, it utilizes male pin contacts with tin plating on both the mating and post surfaces. The housing is constructed from natural liquid crystal polymer (LCP), rated UL94 V-0 for flammability. Electrical ratings include 1A current and 125V voltage, operating within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole design facilitates compact board-to-cable interconnections.
• Four-wall shrouded housing ensures precise alignment and prevents misinsertion.
• Tin-plated phosphor bronze contacts provide reliable conductivity and corrosion resistance.
• LCP insulation material supports high thermal stability and low moisture absorption.

Headers, Male Pins Applications

• Wire-to-board connections in consumer electronics
• Internal wiring harnesses in data processing equipment
• Signal transmission in compact industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging type, as variations exist within the FitMate family. Ensure compatibility with mating cable assemblies regarding wire gauge and termination style. Confirm that the right-angle orientation aligns with the mechanical constraints of the target PCB layout before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, cost-effective solution is required for signal-level applications. The 1.25mm pitch allows for dense routing compared to larger spacing standards. Consider the 1A current rating against total circuit load requirements. The through-hole right-angle format is suitable for vertical cabling exits where surface mount options are impractical.

Headers, Male Pins Part Context

This connector belongs to the Amphenol FitMate™ line, which focuses on providing economical yet durable interconnect solutions. The series is widely utilized in general-purpose electronic assemblies where space efficiency and ease of assembly are prioritized. It represents a standard offering within Amphenol's broad portfolio of rectangular headers and wire-to-board systems.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 1.25mm pitch, 4-position, right-angle through-hole headers from different manufacturers. Verify mechanical dimensions, pin assignment, and shroud height to ensure interchangeability without modifying the PCB footprint or cable assembly.

Headers, Male Pins FAQ

What is the flammability rating of the connector housing?

The liquid crystal polymer (LCP) housing is rated UL94 V-0.

Does this connector feature a locking mechanism?

Yes, it uses a pin-lock system to secure the mating cable assembly.
