10114829-13108LF

Headers, Male Pins Overview

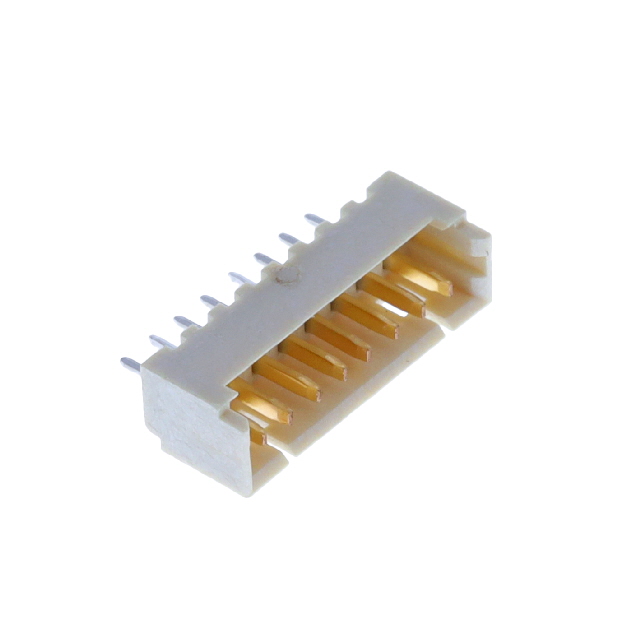

The 10114829-13108LF is a wire-to-board header manufactured by Amphenol ICC (FCI). It features an 8-position configuration with a 1.25mm pitch and single-row layout. Designed for through-hole, right-angle mounting, the connector utilizes gold-plated contacts on the mating interface and tin plating on the tail. The housing is constructed from natural-colored liquid crystal polymer (LCP) rated UL94 V-0. Electrical ratings include 125V and 1A current capacity, with an operating temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Four-wall shrouded design ensures precise alignment during mating
• Right-angle through-hole termination facilitates compact board layouts
• Gold-plated contact surfaces provide reliable signal transmission

Headers, Male Pins Applications

• Consumer electronics internal interconnects
• Industrial control system wiring
• Data communication equipment connections

Headers, Male Pins Procurement Notes

Verify component authenticity against official Amphenol ICC documentation. Confirm that the specific suffix matches required plating specifications. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering processes.

Headers, Male Pins Selection Notes

Select this model for applications requiring fine-pitch connectivity between wires and PCBs. The 1.25mm spacing suits dense routing requirements. Verify that the 1A current rating meets circuit demands and that the right-angle form factor aligns with mechanical constraints.

Headers, Male Pins Part Context

This component belongs to the Minitek 1.25mm series, designed for wire-to-board applications. It complements other variants in the family offering different pin counts and orientations. The series supports robust performance in consumer and industrial environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same series include 10114831-10108LF and 10114831-12104LF. Verify identical pitch and mounting style before substitution.
