10114830-10103LF

Headers, Male Pins Overview

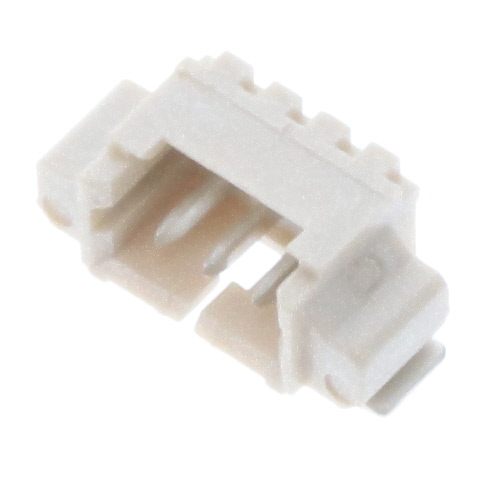

The Amphenol ICC (FCI) 10114830-10103LF is a Minitek® header connector designed for board-to-cable or wire applications. It features a 1.25mm pitch with 3 positions and right-angle surface mount termination. The contacts are made of phosphor bronze with tin plating, rated for 1A at 125V. Constructed from liquid crystal polymer (LCP), it offers UL94 V-0 flammability rating and operates between -40°C and 105°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Tin-plated phosphor bronze contacts for reliable conductivity
• Liquid crystal polymer insulation for thermal stability

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• Consumer electronics internal connections

Headers, Male Pins Procurement Notes

Verify the specific pin count and termination style against the datasheet to ensure compatibility with the target PCB layout. Confirm that the tin plating specification meets the environmental requirements for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle SMT header is required for signal transmission in space-constrained designs. Ensure the 1.25mm pitch aligns with the mating cable or wire harness specifications.

Headers, Male Pins Part Context

This part belongs to the Minitek® 1.25mm series by Amphenol ICC (FCI). The series provides cost-effective, high-density interconnect solutions suitable for various consumer and industrial electronic applications requiring reliable board-to-wire connectivity.

Headers, Male Pins Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify mechanical dimensions and electrical ratings before considering alternative manufacturers.
