10114830-10104LF

Headers, Male Pins Overview

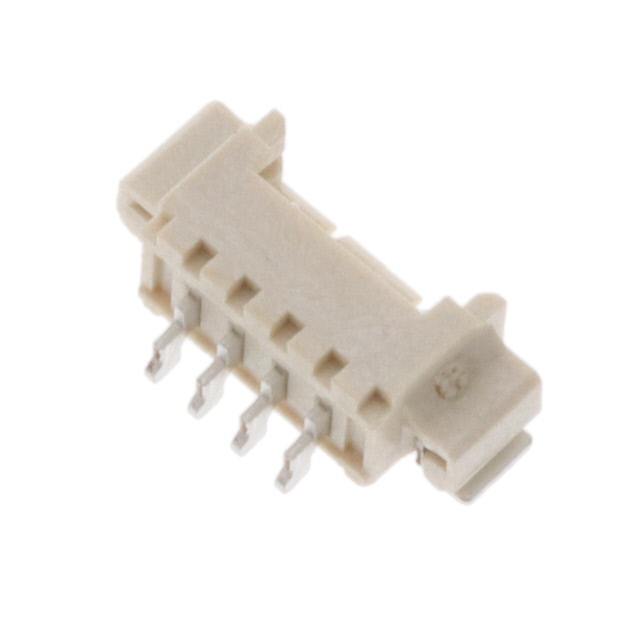

The Amphenol ICC (FCI) 10114830-10104LF is a Minitek® header connector designed for board-to-cable or wire applications. It features a 1.25mm pitch with four positions and right-angle surface mount termination. The contacts are made of phosphor bronze with a tin finish, housed in natural liquid crystal polymer (LCP). Rated for 1A at 125V, it operates within a -40°C to 105°C range and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Tin-plated phosphor bronze contacts ensure reliable conductivity
• Natural LCP insulation provides high thermal stability and UL94 V-0 rating

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• General electronic device internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and packaging options. Ensure the component matches the required surface mount footprint and right-angle orientation for your PCB layout. Cross-reference the pin count and pitch specifications to guarantee compatibility with mating cables or harnesses.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount header is required for signal or low-power distribution. The 1.25mm pitch offers a balance between density and spacing. Consider the tin finish for general-purpose soldering and the LCP material for environments requiring moderate heat resistance during assembly.

Headers, Male Pins Part Context

This part belongs to the Minitek® 1.25mm series by Amphenol ICC (FCI), a widely used line of connectors for consumer electronics and industrial equipment. The series provides various configurations including vertical and right-angle headers, catering to diverse board-to-wire connectivity needs with standardized dimensions.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 1.25mm pitch, 4-position, right-angle SMD headers from manufacturers such as Molex or JST, provided they match the pin configuration, housing height, and terminal style.
