10114830-10105LF

Headers, Male Pins Overview

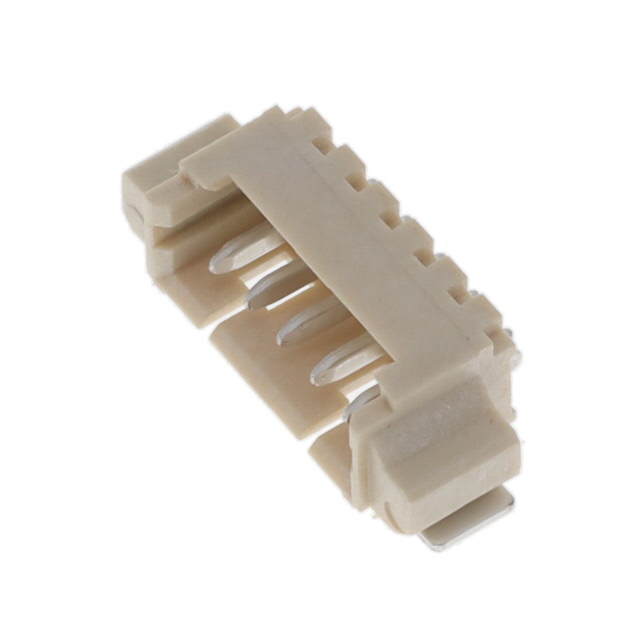

The Amphenol ICC (FCI) part number 10114830-10105LF is a wire-to-board header connector belonging to the Minitek® 1.25mm series. It features a single row of five positions with a 1.25mm (0.049 inch) mating pitch. Designed for surface mount installation at a right angle, the housing utilizes natural liquid crystal polymer (LCP) insulation rated UL94 V-0. The phosphor bronze contacts are tin-plated and include fixed solder tails for secure board attachment. Rated for 1A current and 125V voltage, it operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design with fixed solder tails for enhanced mechanical stability
• Natural LCP insulation material providing UL94 V-0 flammability rating
• Tin-plated phosphor bronze contacts ensuring reliable signal transmission

Headers, Male Pins Applications

• Wire-to-board interconnections in compact electronic assemblies
• Signal routing in consumer electronics and data communication devices
• Industrial control systems requiring right-angle SMT headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging configuration. Ensure compatibility with automated pick-and-place equipment due to the surface mount form factor. Confirm that the 1.25mm pitch aligns with the target PCB footprint and mating connector specifications. Check for RoHS compliance status if required by project regulations.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is necessary for space-constrained designs. The 1.25mm pitch offers a balance between density and ease of assembly compared to finer pitches. Consider the tin plating for general-purpose applications rather than high-corrosion environments where gold might be preferred. Verify that the 1A current rating meets the circuit requirements.

Headers, Male Pins Part Context

This connector is part of the Minitek® Multipitch™ family, which provides versatile interconnect solutions for various industries. The 10114830 series specifically targets surface mount applications, offering reliability through its robust LCP housing and precise pin alignment. It complements other components in the same pitch system for consistent design integration.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series may include different position counts or plating options, such as 10114830-10106LF. Cross-brand replacements require careful verification of pitch, height, and locking mechanisms to ensure functional equivalence without redesigning the PCB layout.

Headers, Male Pins FAQ

What is the contact plating material for this connector?

The contacts are made of phosphor bronze with a tin plating finish.

Is this connector suitable for high-vibration environments?

Yes, the fixed solder tail design and right-angle SMT mounting provide strong mechanical retention on the PCB.
