10114830-10106LF

Headers, Male Pins Overview

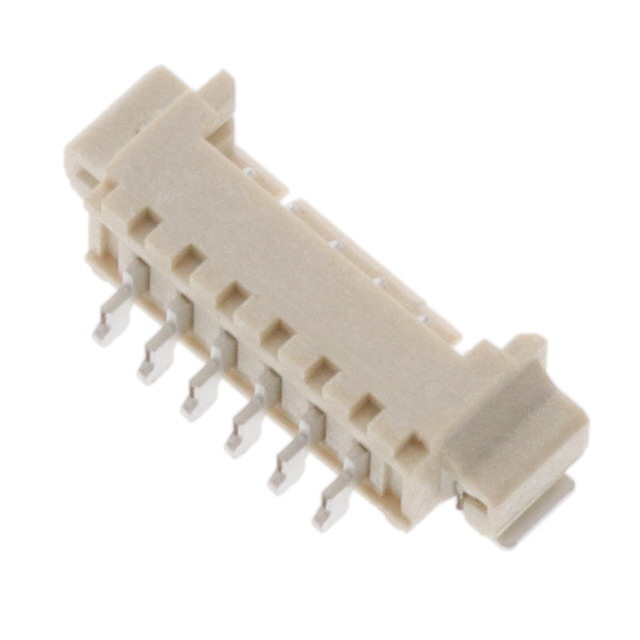

The Amphenol ICC (FCI) part number 10114830-10106LF is a Minitek® header connector designed for wire-to-board applications. It features a 1.25mm pitch with six positions in a single row. The component utilizes surface mount termination with right-angle orientation and fixed tails. Contact surfaces are tin-plated on both mating and tail sections, fabricated from phosphor bronze. The housing is constructed from liquid crystal polymer (LCP) in a natural color, rated UL94 V-0. Electrical ratings include 1A current and 125V voltage, operating within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design with fixed solder tails for secure PCB attachment
• Tin-plated phosphor bronze contacts ensure reliable signal transmission
• Natural LCP insulation provides high thermal stability and UL94 V-0 flammability rating

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Internal circuit board connections in mobile devices
• Signal routing in compact data processing equipment

Headers, Male Pins Procurement Notes

Verify the specific pin count suffix in the part number to confirm the exact position configuration before procurement. Ensure compatibility with automated surface mount assembly processes due to the fixed tail design. Confirm that the tin plating specification meets the required corrosion resistance standards for the intended operational environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for space-constrained designs. The 1.25mm pitch offers a balance between density and manufacturability. Consider the fixed tail feature for enhanced mechanical retention during reflow soldering compared to floating tail variants.

Headers, Male Pins Part Context

This connector belongs to the Minitek® 1.25mm series by Amphenol ICC (FCI). The series is engineered for cost-effective, high-volume wire-to-board solutions. It supports standard surface mount technology and is widely utilized in general-purpose electronic assemblies requiring reliable interconnects.

Headers, Male Pins Replacement Considerations

Cross-reference with other Minitek® 1.25mm headers from Amphenol or compatible third-party manufacturers offering identical 1.25mm pitch, SMT right-angle form factors, and tin-plated contacts to ensure mechanical and electrical interchangeability.
