10114830-10108LF

Headers, Male Pins Overview

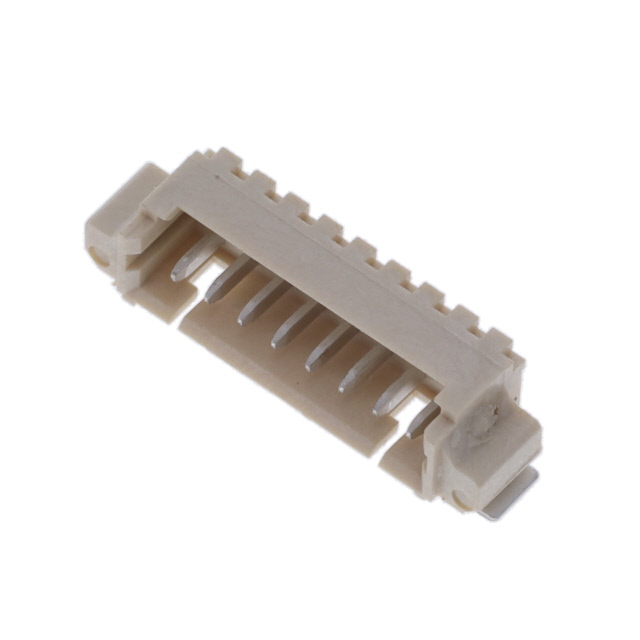

The Amphenol ICC (FCI) 10114830-10108LF is a Minitek® header connector designed for board-to-cable or wire applications. It features a 1.25mm pitch with eight positions in a single row configuration. The component utilizes surface mount, right-angle termination and includes pin lock fastening. Contacts are made of phosphor bronze with tin plating, housed in natural liquid crystal polymer rated UL94 V-0. It supports 1A current at 125V within a -40°C to 105°C range.

Headers, Male Pins Feature Summary

• Surface mount right-angle termination for automated PCB assembly
• Pin lock mechanism ensures secure mating retention
• Four-wall shielded housing design for signal protection
• Tin-plated phosphor bronze contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• Consumer electronics internal wiring
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm contact plating and packaging details. Ensure the selected variant matches the required surface mount orientation and pin count. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for high-density layouts. The 1.25mm pitch balances spacing needs with compact footprint constraints. Verify that the tin plating meets environmental standards if lead-free specifications are mandatory for the target application.

Headers, Male Pins Part Context

This part belongs to the Minitek® 1.25mm series by Amphenol ICC (FCI). The series provides cost-effective line-to-board solutions utilizing liquid crystal polymer insulation. These connectors are engineered for durability and ease of installation in space-constrained electronic environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
