10114830-10110LF

Headers, Male Pins Overview

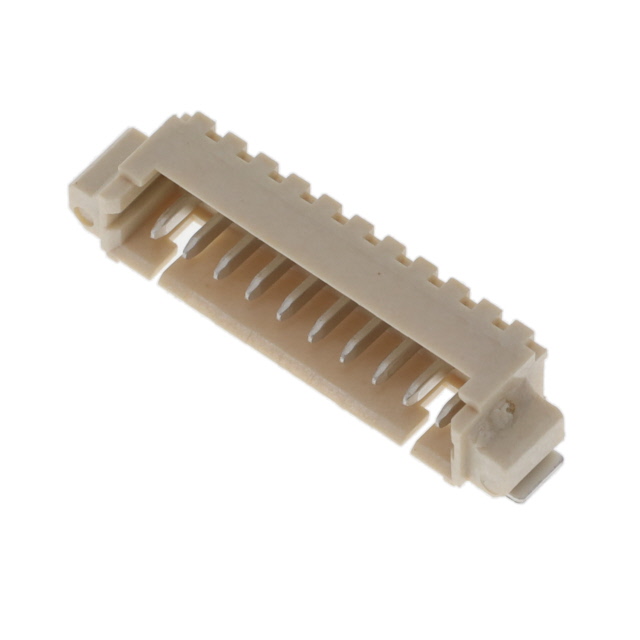

The Amphenol ICC (FCI) part number 10114830-10110LF is a surface mount, right-angle connector header belonging to the 10114830 series. It features a single row of ten positions with a 1.25mm pitch spacing. The connector utilizes male pin contacts designed for wire-to-board applications. Constructed with liquid crystal polymer insulation and copper alloy terminals, it supports a maximum current rating of one ampere at 125 volts. The operating temperature range spans from negative forty degrees Celsius to one hundred five degrees Celsius.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for automated PCB assembly
• Single row configuration with ten contact positions
• Liquid crystal polymer insulation material for thermal stability

Headers, Male Pins Applications

• Wire-to-board interconnections in compact electronic assemblies
• Signal transmission in consumer electronics devices
• Data communication equipment internal connections

Headers, Male Pins Procurement Notes

Verify the specific suffix and packaging configuration against official manufacturer documentation prior to ordering. Confirm that the surface mount footprint matches the target printed circuit board layout. Ensure compatibility with standard reflow soldering profiles for right-angle headers. Cross-reference the active status with the latest distributor catalogs to confirm availability.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle wire-to-board connection is required for space-constrained designs. The 1.25mm pitch offers a balance between density and manufacturability. Consider the surface mount orientation for efficient board utilization. Validate that the one ampere current rating meets the specific circuit requirements without derating issues.

Headers, Male Pins Part Context

This connector belongs to the FCI 10114830 series, which provides reliable interconnection solutions for various industrial and commercial applications. The series is characterized by its robust construction and consistent electrical performance. Amphenol ICC manufactures these components to meet stringent quality standards for high-volume production environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
