10114830-11104LF

Headers, Male Pins Overview

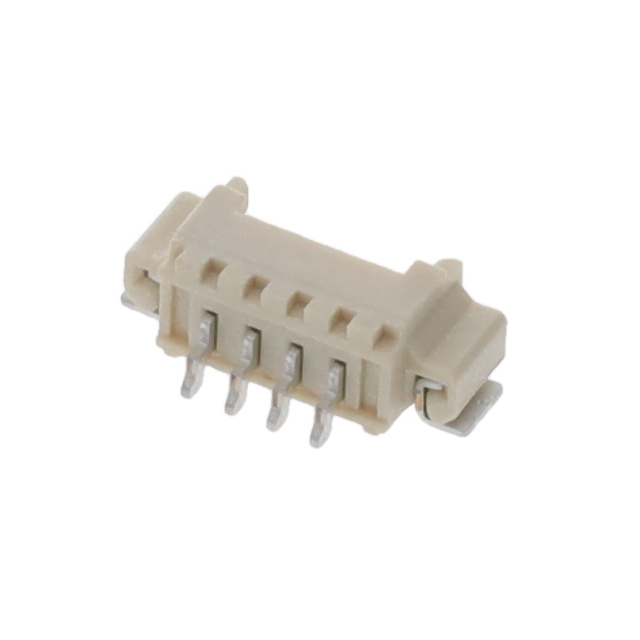

The Amphenol ICC (FCI) part number 10114830-11104LF is a Minitek® 1.27mm Wire-to-Board header connector designed for surface mount termination. This component features a single row with four positions and utilizes a right-angle orientation to facilitate compact board layouts. The contacts are constructed from phosphor bronze with a gold plating finish, ensuring reliable conductivity and corrosion resistance. It is rated for 1A current and 125V voltage, operating within a temperature range of -40°C to 105°C. The housing is made of natural-colored liquid crystal polymer (LCP), meeting UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Provides secure electrical interconnection between cables and printed circuit boards using a robust surface mount design.
• Features a right-angle configuration that optimizes spatial efficiency in dense electronic assemblies.
• Utilizes gold-plated phosphor bronze contacts to maintain signal integrity and resist environmental degradation.

Headers, Male Pins Applications

• Consumer electronics requiring compact wire-to-board connections
• Industrial control systems utilizing surface mount headers
• Telecommunications equipment needing reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact pin count, pitch, and termination style. Ensure compatibility with automated surface mount assembly processes. Cross-reference the full part number with authorized distributors to confirm availability and lead times. Validate material specifications such as LCP insulation and UL94 V-0 ratings for your specific application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount wire-to-board solution is required. The 1.27mm pitch allows for high-density routing while maintaining adequate spacing. Consider the right-angle form factor for space-constrained designs where vertical clearance is limited. Ensure the operating temperature and voltage ratings align with system requirements.

Headers, Male Pins Part Context

This connector belongs to the Minitek® 1.27mm series by Amphenol ICC (FCI). The series is engineered for cost-effective and reliable interconnect solutions in various electronic applications. It offers a balance of performance and manufacturability, suitable for high-volume production environments requiring consistent quality and durability.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27mm pitch, 4-position count, surface mount right-angle header configuration, and gold-plated contact finish. Verify mechanical dimensions and thermal ratings before integration.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with a gold plating finish.

Is this connector RoHS compliant?

Yes, the 'LF' suffix indicates that the component is lead-free and complies with RoHS standards.
