10114830-11106LF

Headers, Male Pins Overview

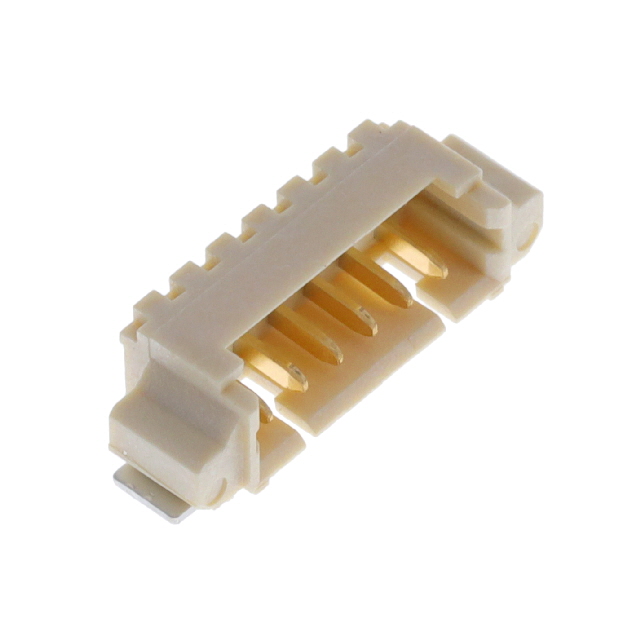

The Amphenol ICC (FCI) part number 10114830-11106LF is a rectangular header connector belonging to the Minitek® 1.25mm series. It features six positions with a 1.25mm pitch and utilizes surface mount, right-angle termination for board-to-cable or wire applications. The connector employs pin lock fastening and includes four-wall shielding. Contacts are made of phosphor bronze with tin plating on both mating and tail surfaces. Constructed from liquid crystal polymer (LCP), it supports a working temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Four-wall shielding structure for enhanced EMI protection
• Pin lock mechanism ensures secure mating retention
• Tin-plated phosphor bronze contacts for reliable conductivity

Headers, Male Pins Applications

• Data communication equipment interconnects
• Industrial control system wiring
• Consumer electronics internal connections
• Signal transmission in compact devices

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Amphenol documentation to confirm contact plating and packaging details. Ensure compatibility with automated surface mount assembly processes. Confirm that the required current rating aligns with system specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, shielded header is required for high-density layouts. The right-angle orientation facilitates cable routing perpendicular to the board. Verify that the 1.25mm pitch matches the mating connector footprint and that the surface mount termination suits the manufacturing method.

Headers, Male Pins Part Context

This connector is part of the Minitek® 1.25mm family, designed for cost-effective and durable interconnections. The series offers various position counts and termination styles to support diverse board-to-wire applications in demanding environments while maintaining signal integrity through shielding options.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
