10114830-11110LF

Headers, Male Pins Overview

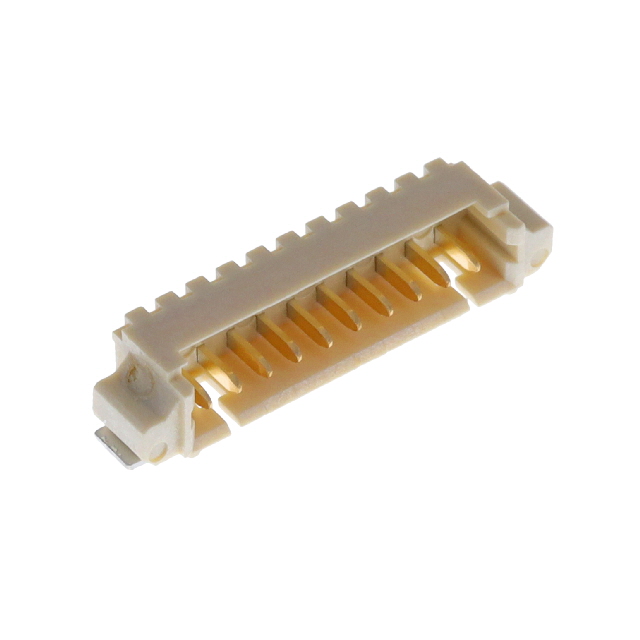

The Amphenol ICC (FCI) part number 10114830-11110LF is a Minitek® 1.25mm series header connector designed for surface mount, right-angle installation. It features a single row with ten male pin contacts spaced at 0.049 inches (1.25mm). The housing is constructed from natural-colored liquid crystal polymer (LCP) rated UL94 V-0. Contacts are made of phosphor bronze with tin plating. Rated for 1A current and 125V, it operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact PCB integration
• Tin-plated phosphor bronze contacts ensure reliable signal transmission
• UL94 V-0 rated LCP insulation provides thermal stability

Headers, Male Pins Applications

• Consumer electronics assembly
• Industrial control systems
• Data communication equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging format. Ensure the selected variant matches the required surface mount orientation and pin count. Confirm RoHS compliance status against current manufacturing records before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle interconnect is required for high-density layouts. The 1.25mm pitch accommodates standard wire gauges while maintaining board space efficiency. Verify that the operating voltage and current ratings align with the circuit requirements.

Headers, Male Pins Part Context

This connector belongs to the Minitek® 1.25mm family, which provides cost-effective solutions for cable-to-board applications. The series is characterized by its robust mechanical locking and consistent electrical performance across various industrial and commercial environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.25mm pitch, 10-position count, and right-angle SMD configuration. Verify compatibility with existing tooling and PCB footprint dimensions.
