10114830-11111LF

Headers, Male Pins Overview

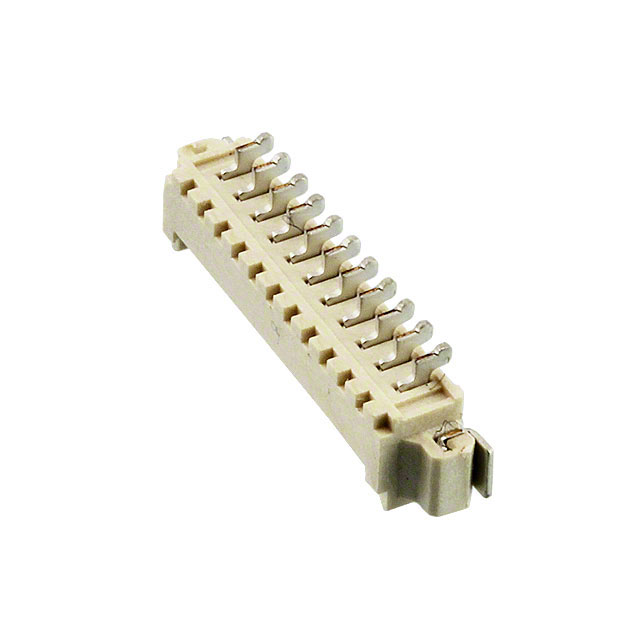

The Amphenol ICC (FCI) part number 10114830-11111LF is a rectangular header connector belonging to the Minitek® 1.25mm series. It features an 11-position configuration with a 0.049-inch (1.25mm) mating pitch. The connector utilizes surface-mount, right-angle termination for PCB integration. Contact materials consist of phosphor bronze with gold plating on the mating surfaces. The housing is constructed from liquid crystal polymer (LCP), rated UL94 V-0 for flammability. Electrical ratings include 1A current and 125V voltage, operating within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Surface-mount right-angle design facilitates automated assembly and compact board layouts.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
• Liquid crystal polymer insulation provides high thermal stability and UL94 V-0 fire rating.
• Pin lock mechanism secures mating connections to prevent disengagement during operation.

Headers, Male Pins Applications

• Data communication equipment interconnects
• Server and storage device internal wiring
• Industrial control system signal routing
• Consumer electronics board-to-cable connections

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distribution channels. Confirm RoHS3 compliance status matches project requirements. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering. Cross-reference pin count and orientation against schematic diagrams to prevent installation errors.

Headers, Male Pins Selection Notes

Select this component when space-constrained designs require right-angle surface-mount headers. The 1.25mm pitch offers a balance between density and manufacturability. Gold plating is suitable for low-level signal applications requiring long-term reliability. Verify that the 1A current rating meets the specific circuit load requirements.

Headers, Male Pins Part Context

This connector belongs to the Minitek® Multipitch™ family, designed for wire-to-board and board-to-cable applications. The series emphasizes high-speed data transmission capabilities and signal integrity. Amphenol ICC (FCI) engineers these components for durability in demanding environments, supporting various industrial and commercial electronic systems.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include 10114830-10105LF (5-position) and 10114831-12104LF (4-position, through-hole). Verify mechanical footprint compatibility and electrical ratings before substitution. No identical 11-position direct replacement is confirmed in public documentation.
