Headers, Male Pins Overview

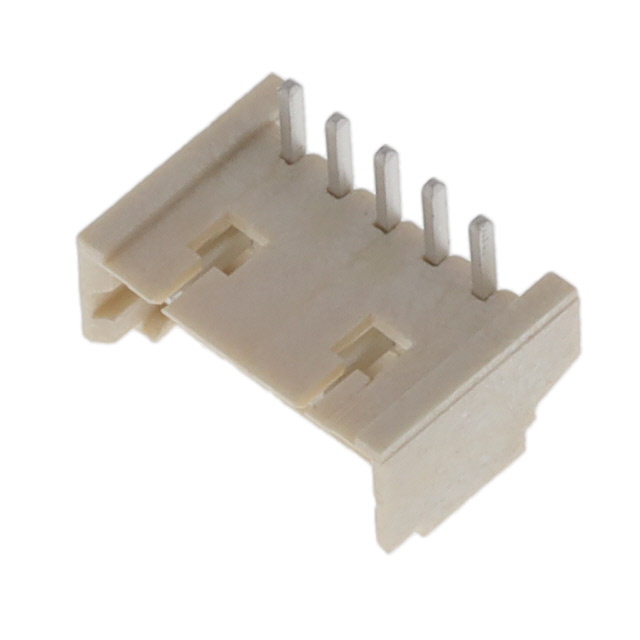

The Amphenol ICC (FCI) 10114831-10105LF is a right-angle through-hole header connector from the Minitek® 1.25mm series. It features a single row with five positions and a 1.25mm pitch. The contacts are made of phosphor bronze with tin plating, while the insulation utilizes natural liquid crystal polymer rated UL94 V-0. Designed for board-to-cable or wire applications, it supports a maximum current of 1A at 125V. The component operates within a temperature range of -40°C to 105°C and includes four-wall shielding.

Headers, Male Pins Feature Summary

• Right-angle through-hole termination for secure PCB mounting
• Four-wall shielded housing for enhanced signal protection
• Tin-plated phosphor bronze contacts ensuring reliable conductivity
• Natural LCP insulation material providing high thermal stability

Headers, Male Pins Applications

• Board-to-cable interconnections in consumer electronics
• Wire-to-board assemblies in industrial control systems
• Signal transmission in compact data communication devices
• General-purpose low-voltage circuit interfacing

Headers, Male Pins Procurement Notes

Verify the specific suffix '10105LF' against official Amphenol documentation to confirm pin count and plating type. Ensure compatibility with mating receptacles regarding pitch and locking mechanisms. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, shielded through-hole header is required for 1.25mm pitch applications. It is suitable for environments demanding UL94 V-0 flammability ratings and operation up to 105°C. Consider alternative series if surface mount technology or different contact materials are needed.

Headers, Male Pins Part Context

This part belongs to the Minitek® 1.25mm product family by Amphenol ICC (FCI), designed for cost-effective and durable interconnect solutions. The series offers various configurations for board-to-wire and board-to-board connections, emphasizing reliability in space-constrained electronic designs across mobile and industrial sectors.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.25mm pitch, 5-position count, right-angle through-hole format, and four-wall shielding. Verify that any replacement maintains identical contact material and insulation properties to ensure mechanical and electrical compatibility.
