10116283-003LF

Overview

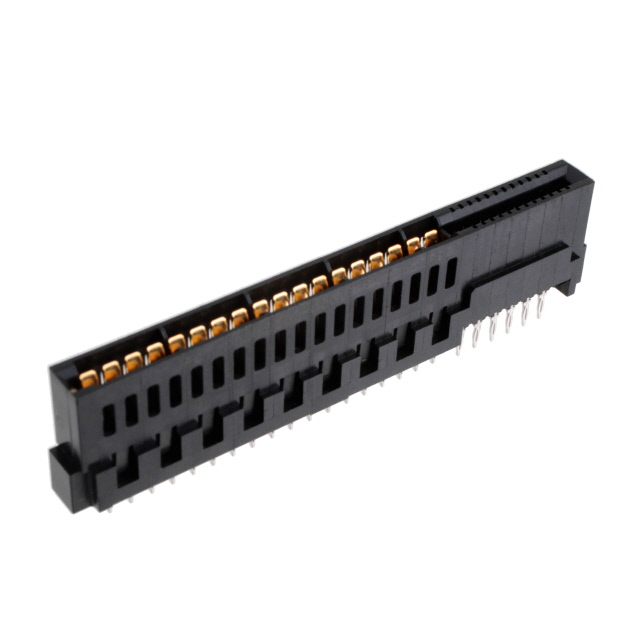

The Amphenol ICC (FCI) 10116283-003LF is a dual-sided edgeboard connector designed for high-performance computing applications. It features 60 positions, configured as 24 signal and 36 power contacts. The connector utilizes a vertical through-hole mounting style with a gold or GXT™ contact finish to ensure reliable conductivity. Constructed from copper alloy contacts within a black housing, it supports operating temperatures ranging from -55°C to +105°C. This component belongs to the HPCE series, optimized for board-to-board interconnects requiring robust signal integrity and power delivery in dense electronic assemblies.

Feature Summary

• Dual-sided configuration providing combined signal and power connectivity in a single interface
• Gold or GXT™ plated cantilever contacts ensure low insertion force and durable mating cycles
• Vertical through-hole termination facilitates secure PCB integration without additional mechanical fasteners

Applications

• High-performance computing server backplanes
• Telecommunications infrastructure equipment
• Industrial control system motherboards

Procurement Notes

Verify the specific contact plating option required, as the part number may denote either standard gold or GXT™ finish depending on the manufacturer's current coding standards. Confirm that the vertical orientation and 60-position count align with the target PCB footprint. Ensure compliance with RoHS directives if applicable to the final assembly requirements. Cross-reference the datasheet for precise mating force specifications before integration.

Selection Notes

Select this connector when a dual-sided edge interface is necessary for both data transmission and power distribution in compact form factors. The vertical mounting style suits applications where space above the board is limited. Evaluate the thermal range of -55°C to +105°C against environmental conditions. Consider the copper alloy material properties for mechanical stability during repeated insertions.

Part Context

This component is part of the Amphenol FCI HPCE (High Performance Computing Edge) product line, acquired through Amphenol's purchase of Framatome Connectors International. The series focuses on delivering high signal integrity and power management solutions for demanding commercial and industrial electronics markets.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical electrical ratings, mechanical dimensions, and contact configuration.
