10117458-20402HLF

Headers, Male Pins Overview

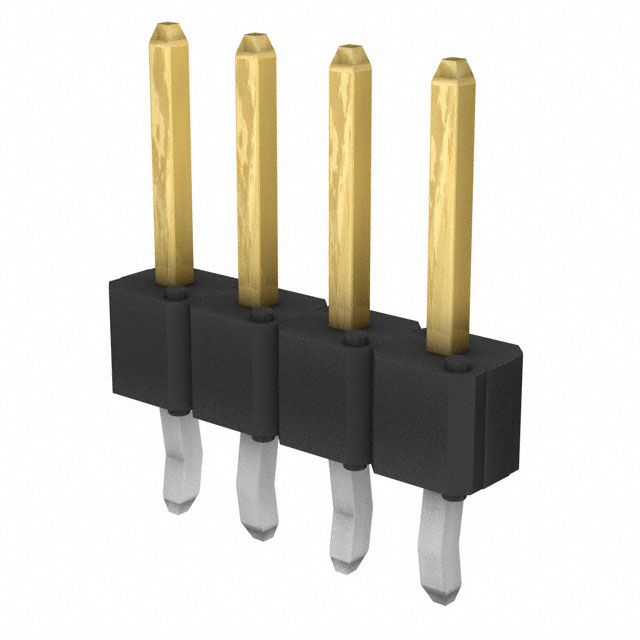

The Amphenol ICC (FCI) part number 10117458-20402HLF is a vertical header connector belonging to the PwrBlade series. It features a 4-position configuration with a 2.54mm pitch, designed for board-to-board connections. The component utilizes through-hole termination and includes gold or GXT™ plated contacts with a thickness of 30.0µin (0.76µm). Constructed from black thermoplastic material rated UL94 V-0, it operates within a temperature range of -20°C to 105°C. This specific variant is currently marked as obsolete by the manufacturer.

Headers, Male Pins Feature Summary

• Vertical header design for direct board mounting
• Integrated power blade contact system
• Gold-plated contact surfaces for reliable conductivity

Headers, Male Pins Applications

• Server backplane interconnects
• Storage device power distribution
• Communication equipment board connections

Headers, Male Pins Procurement Notes

This component is officially discontinued and no longer available for new production orders. Verification of current stock availability through authorized distributors is essential before integration into designs. Engineers must confirm that existing inventory meets quality standards and storage conditions to prevent degradation of the gold plating or housing integrity prior to final procurement decisions.

Headers, Male Pins Selection Notes

Designers should evaluate alternative connectors within the PwrBlade family that maintain similar pin counts and pitch specifications. Compatibility with mating receptacles and adherence to the same thermal and electrical ratings are critical when selecting replacement components. Ensure that any substitute part supports the required mechanical locking features and environmental operating ranges specified in the original datasheet.

Headers, Male Pins Part Context

The PwrBlade series represents a specialized power distribution connector system developed by Amphenol ICC (FCI). These connectors integrate both signal and power contacts to facilitate efficient board-to-board connections in high-density environments. The series is widely recognized for its robust construction and ability to handle significant current loads while maintaining low profile dimensions suitable for modern electronic assemblies.

Headers, Male Pins Replacement Considerations
